Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Leak Detection Valve: Service and Repair

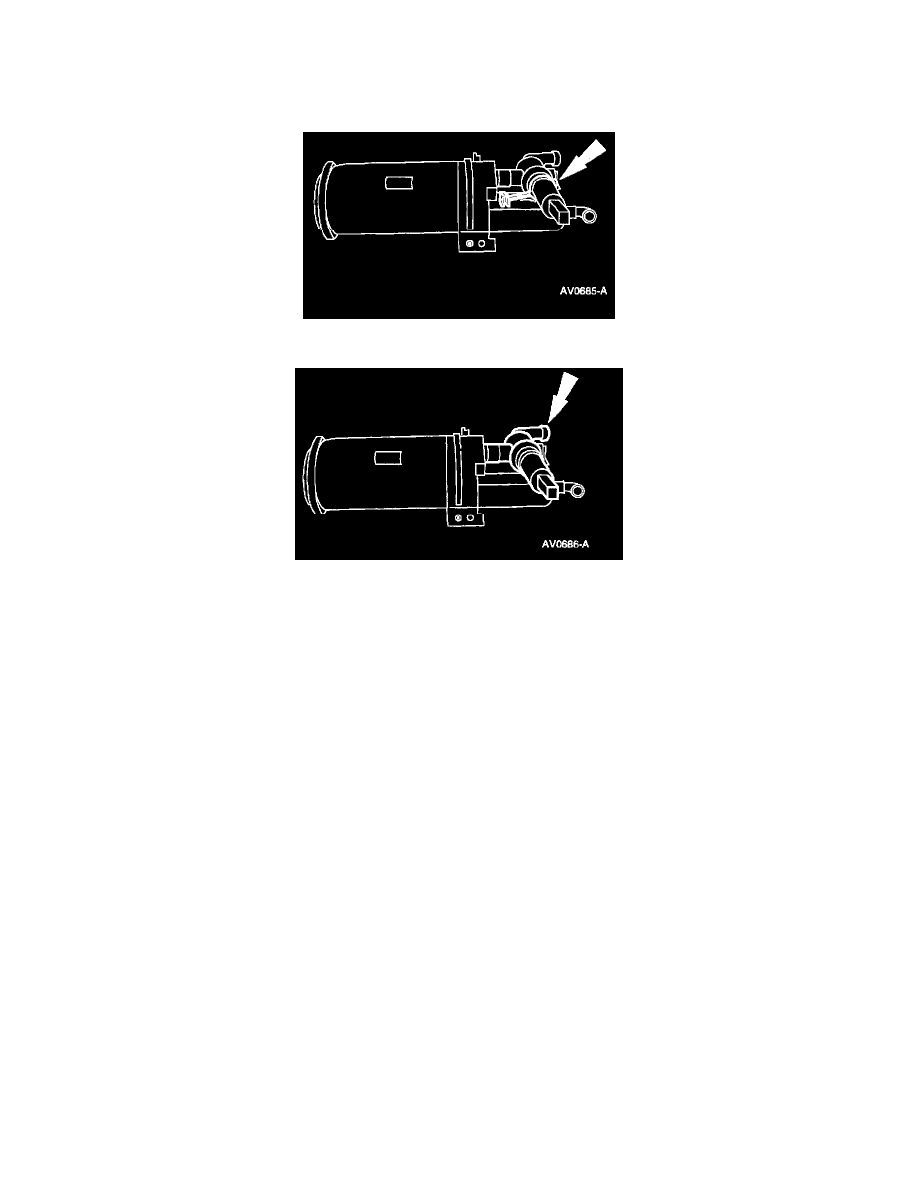

Canister Vent Solenoid
REMOVAL
1. Remove the evaporative emission canister. For additional information, refer to Evaporative Emission Control Canister.
2. Remove the retainer by sliding it off the bracket.
3. Remove the canister vent solenoid.
NOTE:
^
Inspect and install new O-ring seals as necessary.
^
A twisting and pulling motion is necessary to remove the evaporative emission canister vent solenoid.
INSTALLATION
1. To install, reverse the removal procedure.
^
Carry out the evaporative emission system leak test. For additional information, refer to Evaporative Emission System Leak Test. See: Testing
and Inspection/Component Tests and General Diagnostics/Component Tests/Evaporative Emission System Leak Test
^
Carry out the evaporative emission repair verification drive cycle. For additional information, refer to Evaporative Emission Repair
Verification Drive Cycle. See: Service and Repair
NOTE: Lubricate the O-ring seals with MERPOL(R) O-Ring Seal Lubricant or equivalent meeting Ford specification ESE-M99B144-B.
