Page 3
background image

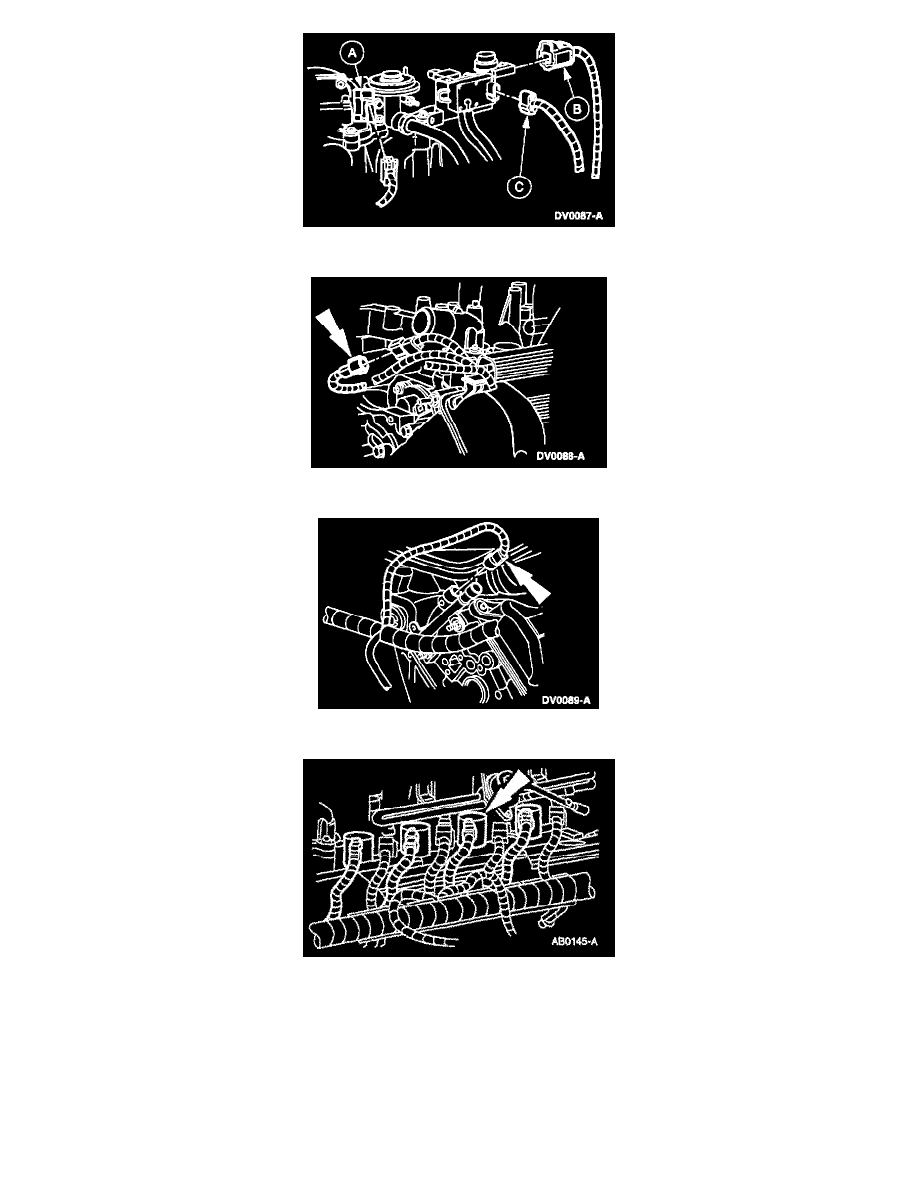

11. Disconnect the (A) Throttle Position (TP) Sensor, the (B) electronic vacuum regulator and the (C) EGR transducer.

12. Disconnect the cylinder head temperature sensor jumper.

13. Disconnect the engine knock sensor connector.

14. Disconnect the fuel injector connectors.
