Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Variable Induction Control Actuator: Service and Repair

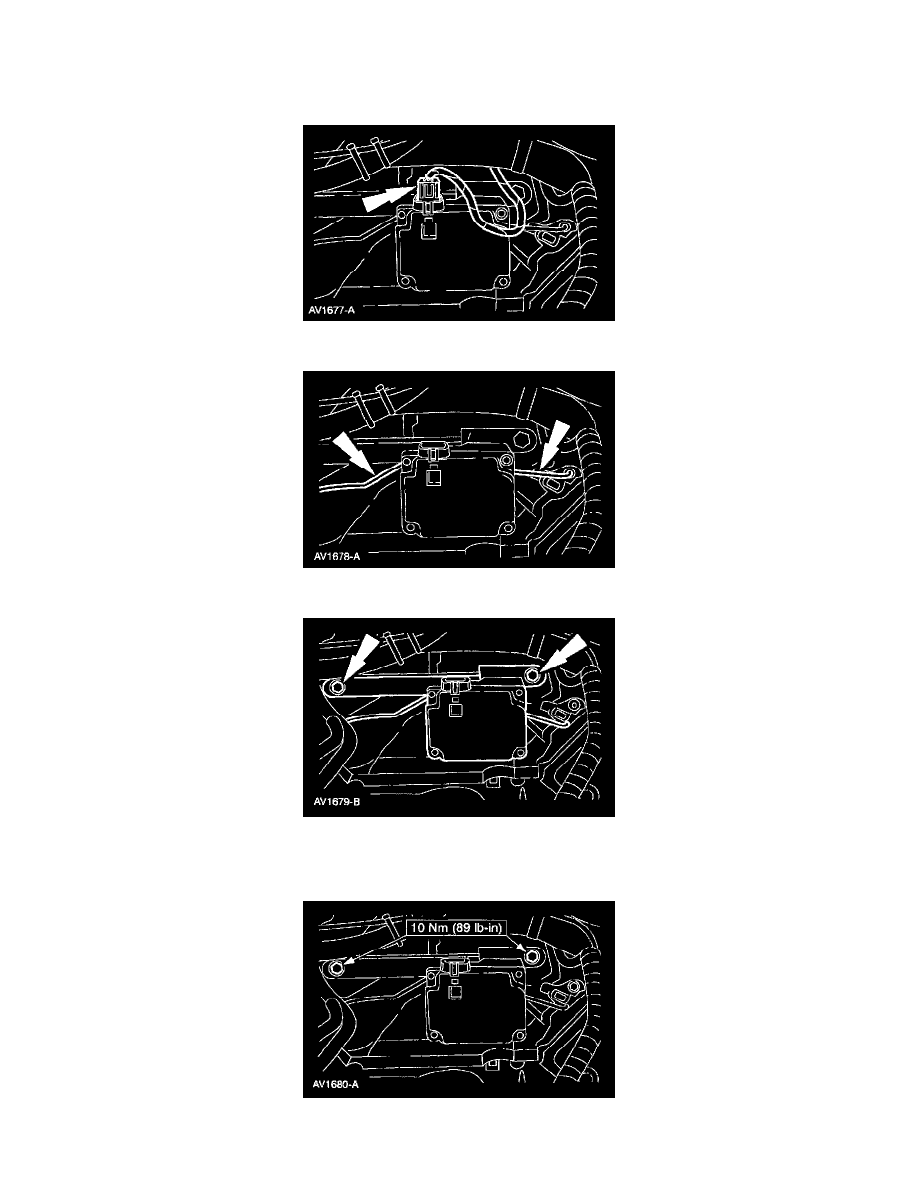

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the engine cover.
3. Disconnect the Intake Manifold Runner Control (IMRC) electrical connector.
4. Disconnect the IMRC actuating links.
5. Remove the three bolts and the IMRC actuator.
INSTALLATION
1. Install the Intake Manifold Runner Control (IMRC) Actuator and the three bolts.
