Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Audible Warning Device Control Module: Service and Repair
Warning Buzzer Module
REMOVAL
1. Disconnect battery ground cable. For additional information, refer to Battery.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
2. Remove the engine cover.

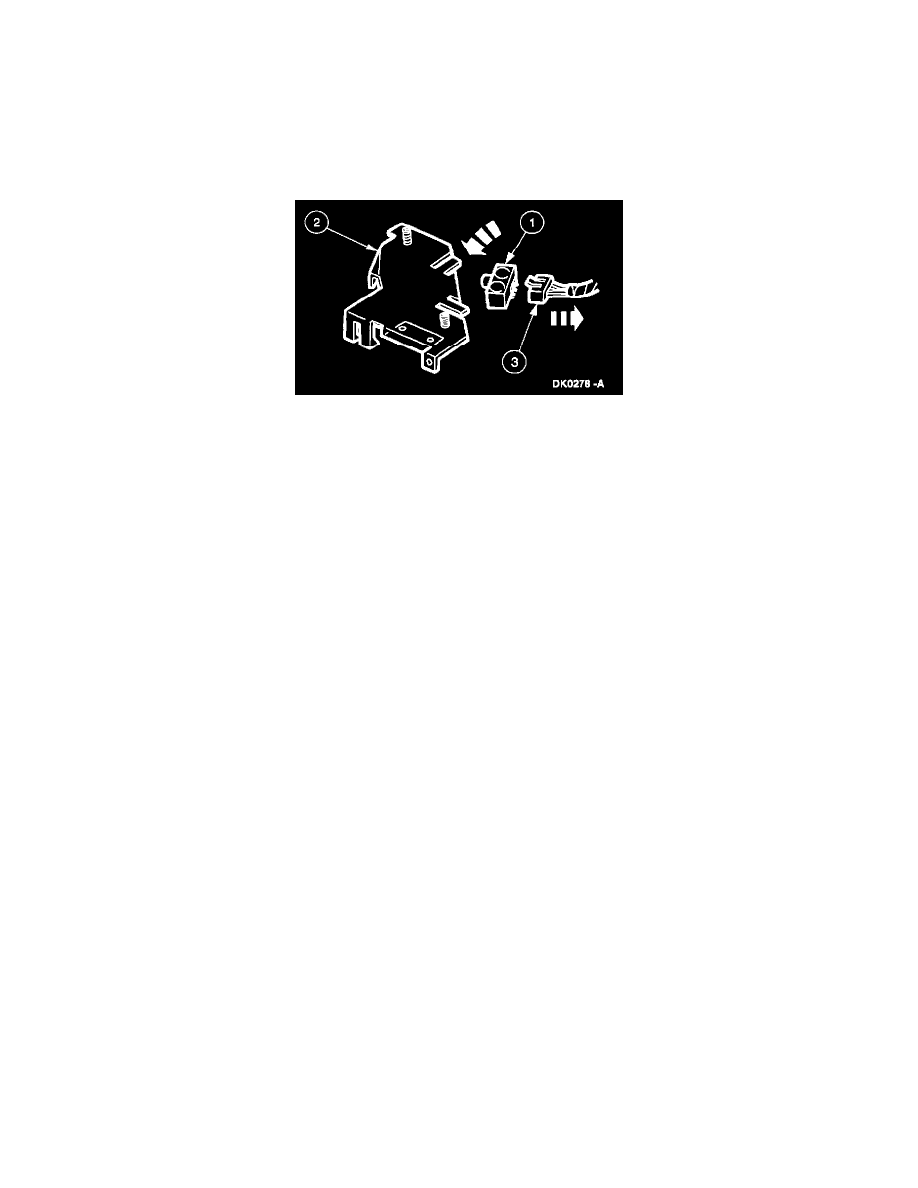

3. Remove the warning buzzer module.
1. Rotate the buzzer module 90 degrees.
2. Pull the buzzer away from the bracket.
3. Disconnect the electrical connector from the buzzer and remove the buzzer module.
INSTALLATION
1. To install, reverse the removal procedure.
