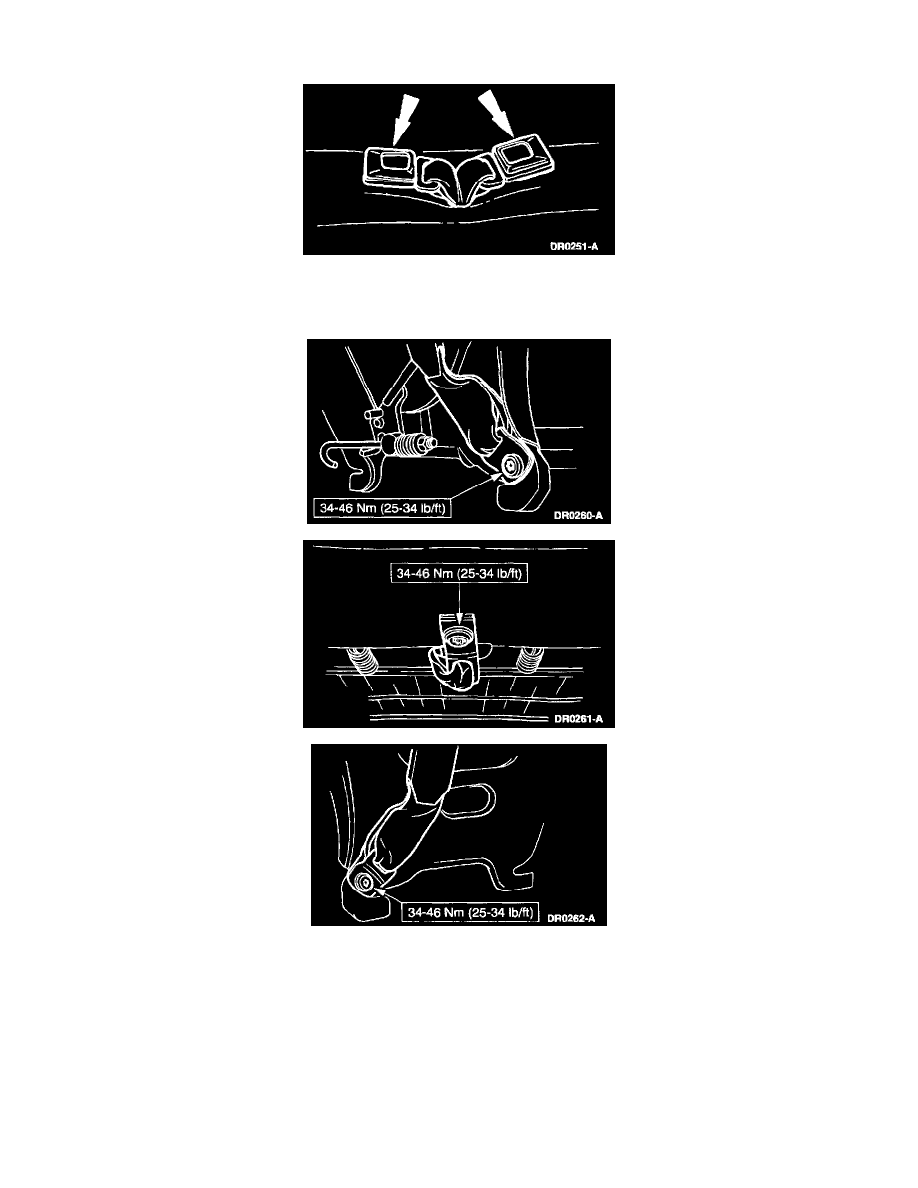

5. Use the Safety Belt Bolt Bit to remove the RH rear safety belt and buckle bolt.

6. Remove the RH rear safety belt and buckle.

INSTALLATION

1. Follow the removal procedure in reverse order.

^

Check the restraint system for proper operation.

NOTE:
^

Make sure the safety belt webbing is not twisted prior to installation.

^

Make sure to tighten bolts to specification.
