Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Safety Belt Buckle: Service and Repair
Safety Belt Buckle - Rear Captains Chair

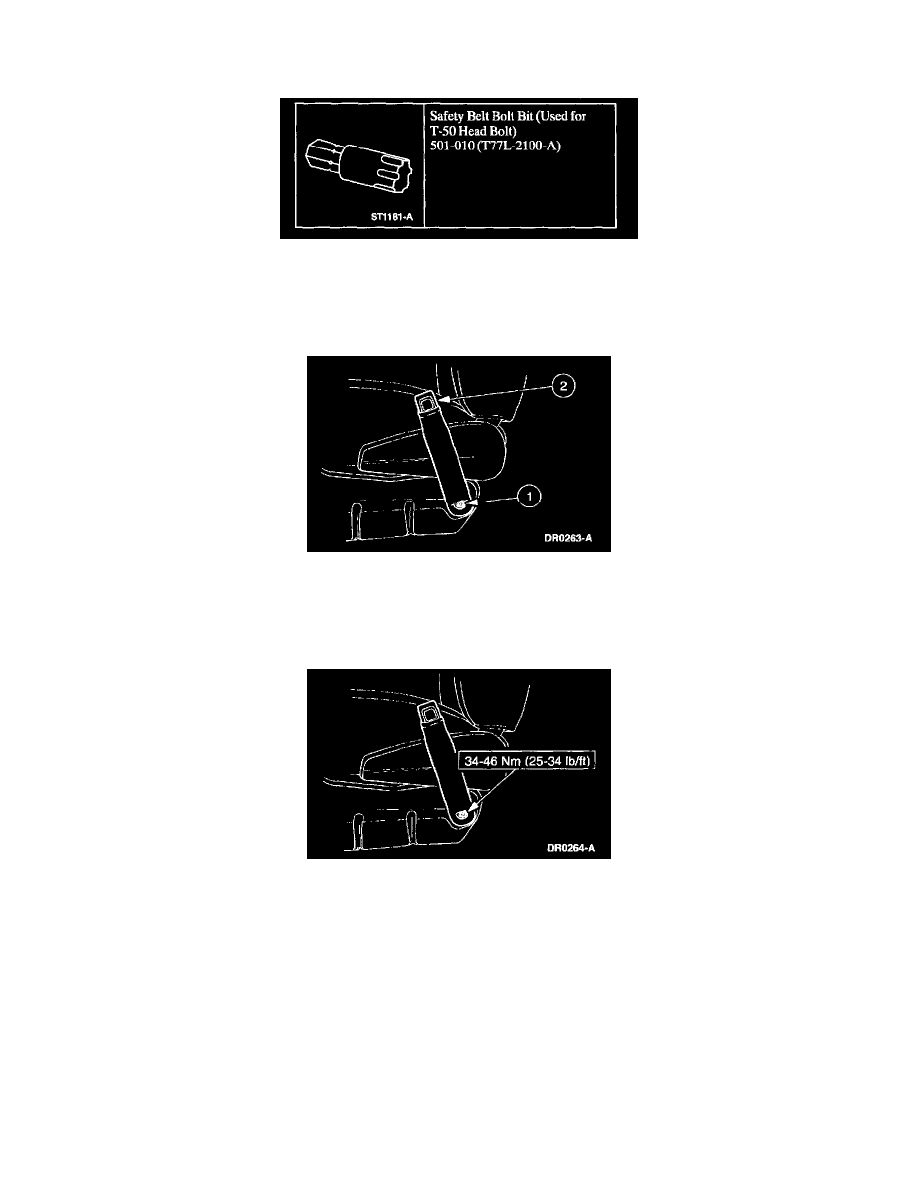

Safety Belt Bolt Bit
SPECIAL SERVICE TOOL(S)
REMOVAL
1. Remove the buckle end.
1
Use the Safety Belt Bolt Bit to remove the buckle end bolt.
2
Remove the buckle end.
INSTALLATION
1. Follow the removal procedure in reverse order.
NOTE: Make sure to tighten bolts to specification.
