Seat Belt Height Adjuster|Removal and Installation|Page 7494 > < Seat Belt Height Adjuster|Removal and Installation|Page 7492
Page 4
background image

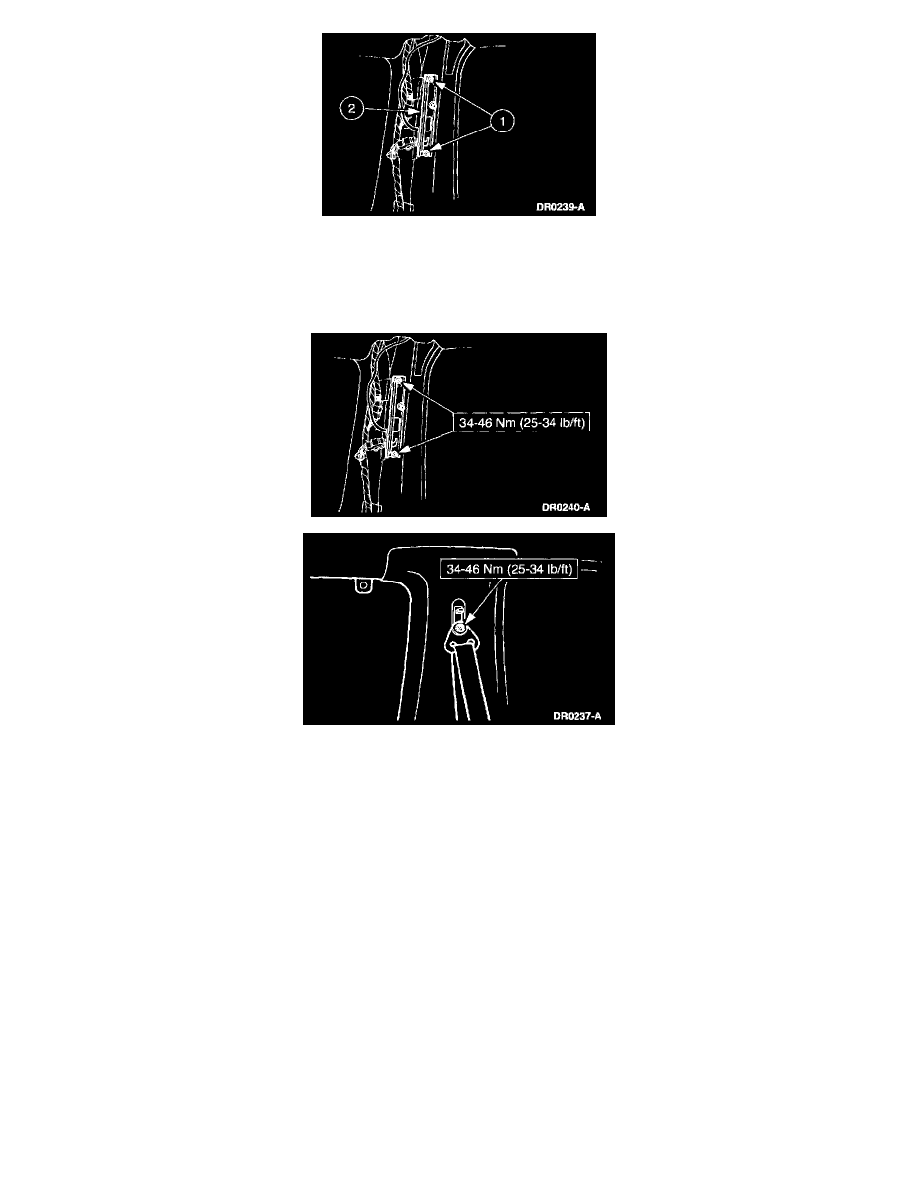

5. Remove the shoulder safety belt height adjuster.

1

Use the Safety Belt Bolt Bit to remove the bolts.

2

Remove the shoulder safety belt height adjuster.

INSTALLATION

1. Follow the removal procedure in reverse order.

^

Check the restraint system for proper operation.

NOTE:
^

Make sure the safety belt webbing is not twisted prior to installation.

^

Make sure to tighten bolts to specification.
