Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Seat Belt Retractor: Service and Repair
Retractor - Rear Safety Belt and Tongue

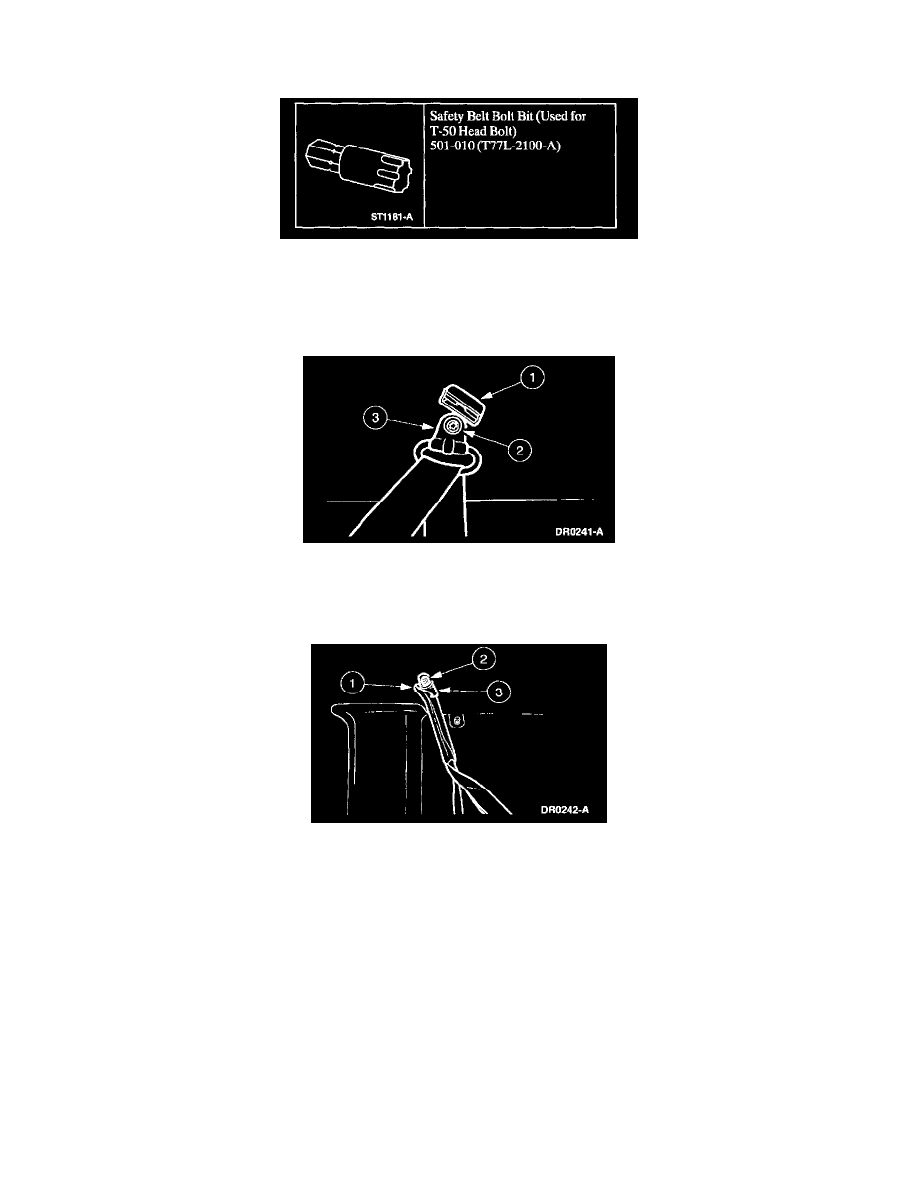

Safety Belt Bolt Bit
SPECIAL SERVICE TOOL(S)
REMOVAL
1. On a rear safety belt retractor and tongue with a flip-up shoulder strap guide cover, remove the shoulder strap guide as follows:
1
Lift the shoulder strap guide cover.
2
Use the Safety Belt Bolt Bit to remove the bolt.
3
Remove the shoulder strap guide.
2. On a rear safety belt retractor and tongue without a flip-up shoulder strap guide cover, remove the shoulder strap guide as follows:
1
Position the shoulder strap guide cover aside.
2
Use the Safety Belt Bolt Bit to remove the bolt.
3
Remove the shoulder strap guide.
3. On the LH second row rear safety belt retractor and tongue, remove the quarter trim finish panel, the body side rear center lower trim panel and the
quarter trim panel.
4. On the LH third, fourth and fifth row rear safety belt retractor and tongues, remove the quarter trim rear upper panel and the quarter trim rear
lower panel.
5. On the RH rear safety belt retractor and tongue, remove the quarter trim upper panel, the quarter trim lower panel, the quarter trim rear upper
panel and the body side trim cover rear.
