Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Seat Belt Tensioner: Service and Repair
Removal and Installation
Driver's Side

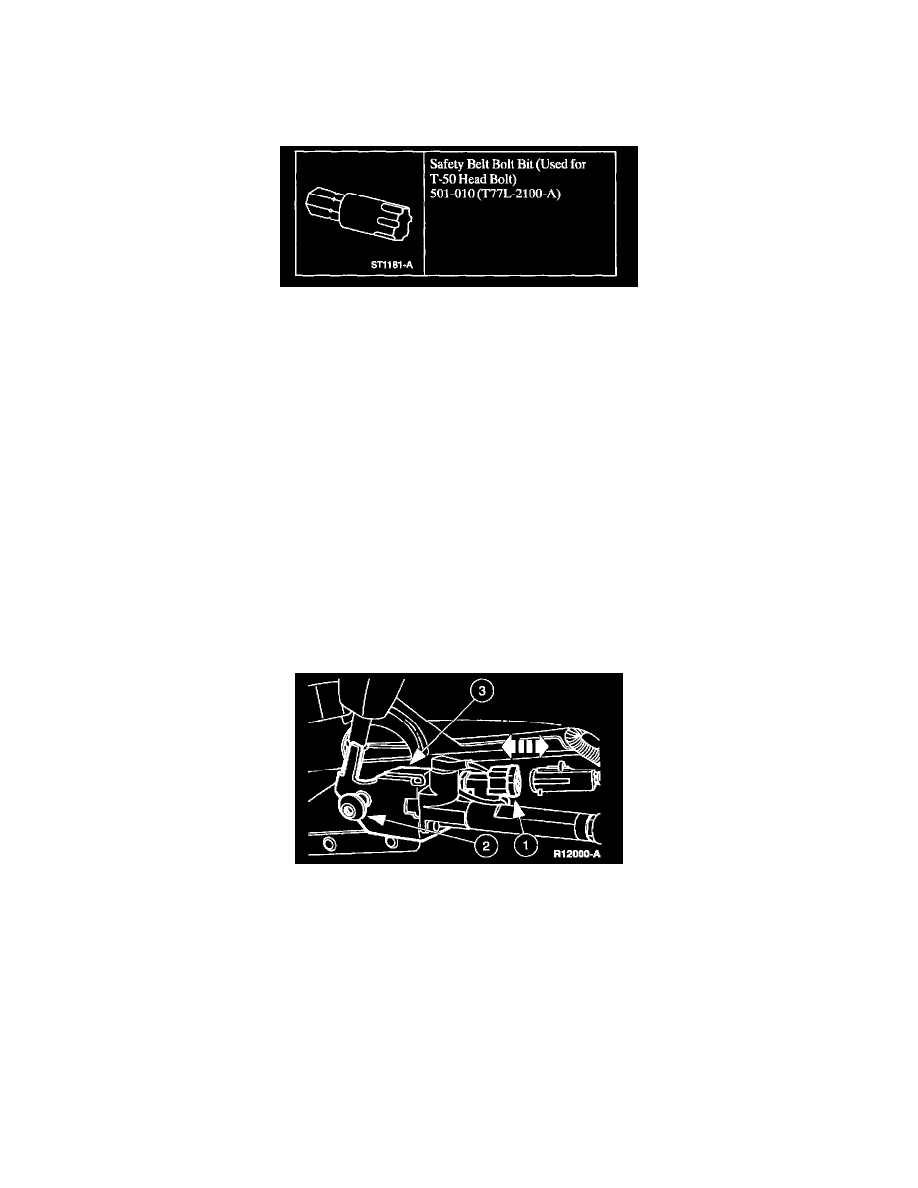

Safety Belt Bolt Bit
SPECIAL SERVICE TOOL(S)
REMOVAL
WARNING:
^
THE BELT AND BUCKLE ASSEMBLY PRETENSIONER IS A PYROTECHNIC DEVICE. ALWAYS WEAR SAFETY GLASSES
WHEN SERVICING AN AIR BAG-EQUIPPED VEHICLE AND WHEN HANDLING A BELT AND BUCKLE ASSEMBLY
PRETENSIONER.
^
THE BELT AND BUCKLE ASSEMBLY PRETENSIONER IS A PYROTECHNIC DEVICE. NEVER PROBE THE CONNECTORS
ON THE BELT AND BUCKLE ASSEMBLY PRETENSIONERS. DOING SO COULD RESULT IN BELT AND BUCKLE ASSEMBLY
PRETENSIONER OR AIR BAG DEPLOYMENT AND COULD RESULT IN PERSONAL INJURY.
^
TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE
DEPLETED BEFORE REPAIRING OR REPLACING ANY AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
COMPONENTS. TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE
AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF
EQUIPPED).
1. Disconnect the battery ground cable.
2. Remove the front seat back latch lower cover.
3. Remove the belt and buckle assembly pretensioner.
1
Disconnect the belt and buckle assembly pretensioner harness connector.
2
Using the Safety Belt Bolt Bit, remove the belt and buckle assembly pretensioner retaining bolt.
3
Remove the belt and buckle assembly pretensioner.
INSTALLATION
WARNING:
^
THE BELT AND BUCKLE ASSEMBLY PRETENSIONER IS A PYROTECHNIC DEVICE. ALWAYS WEAR SAFETY GLASSES
WHEN SERVICING AN AIR BAG-EQUIPPED VEHICLE AND WHEN HANDLING A BELT AND BUCKLE ASSEMBLY
PRETENSIONER.
^
THE BELT AND BUCKLE ASSEMBLY PRETENSIONER IS A PYROTECHNIC DEVICE. NEVER PROBE THE CONNECTORS
ON THE BELT AND BUCKLE ASSEMBLY PRETENSIONERS. DOING SO COULD RESULT IN BELT AND BUCKLE ASSEMBLY
PRETENSIONER OR AIR BAG DEPLOYMENT AND COULD RESULT IN PERSONAL INJURY.
