Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Wheel Speed Sensor: Service and Repair
Sensor, Front
Removal

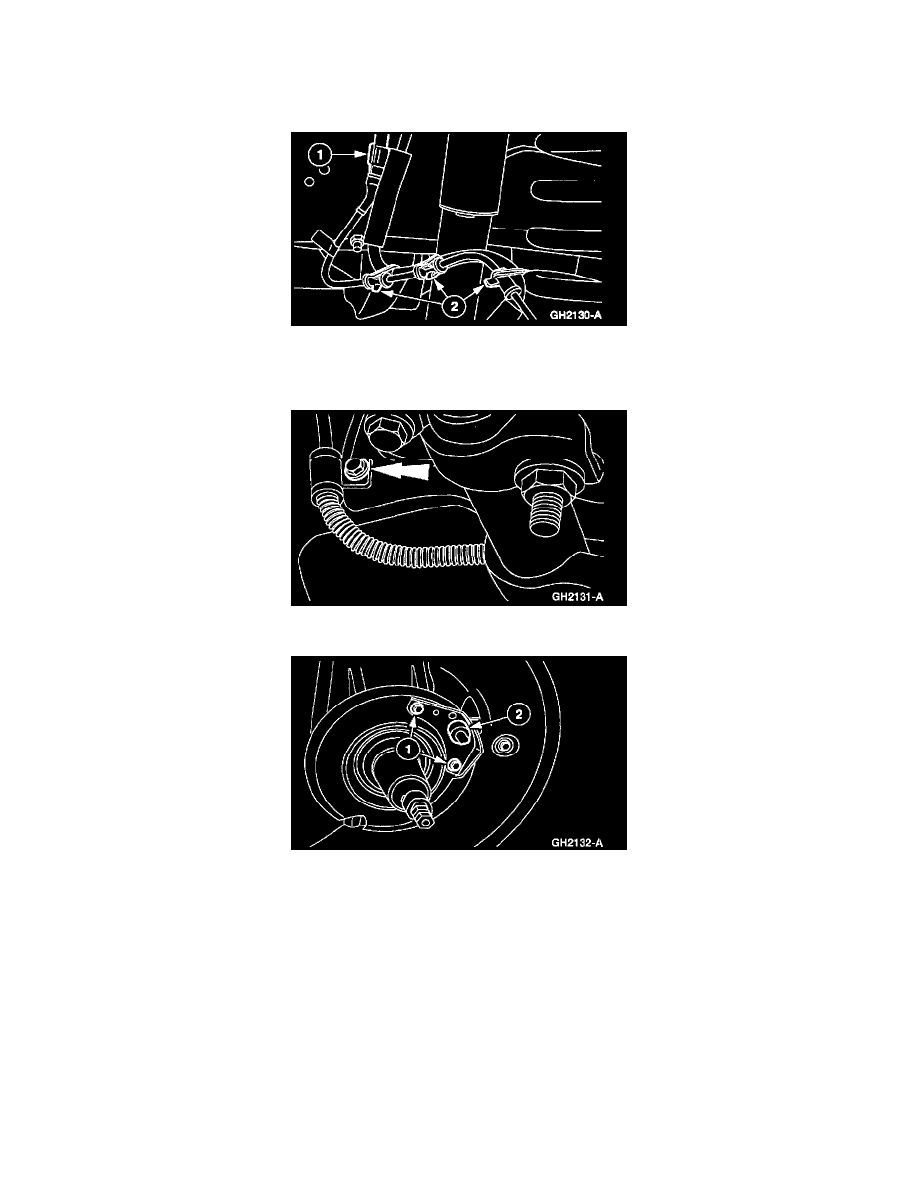

1. Remove the front disc brake rotor.
2. Detach the front anti-lock brake sensor wire from the front brake hose.
1
Disconnect the front anti-lock brake sensor electrical connector.
2
Detach the front anti-lock brake sensor wire from the front brake hose.
3. Remove the bolt.
4. Remove the front anti-lock brake sensor.
1
Remove the front anti-lock brake sensor bolts.
2
Remove the front anti-lock brake sensor.

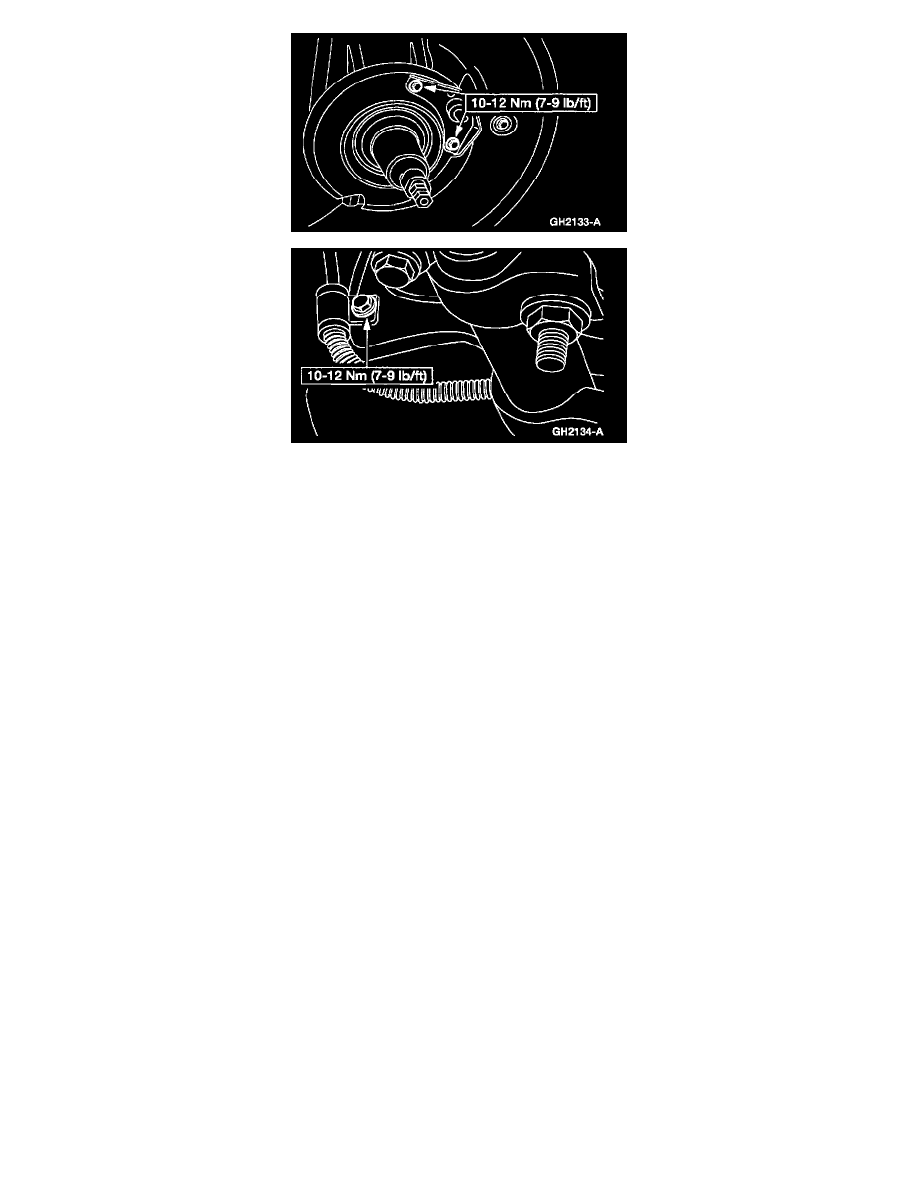

Installation
