Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Fuel Tank Pressure Sensor: Service and Repair
REMOVAL
1. Remove the fuel tank; refer to Fuel Delivery and Air Induction.

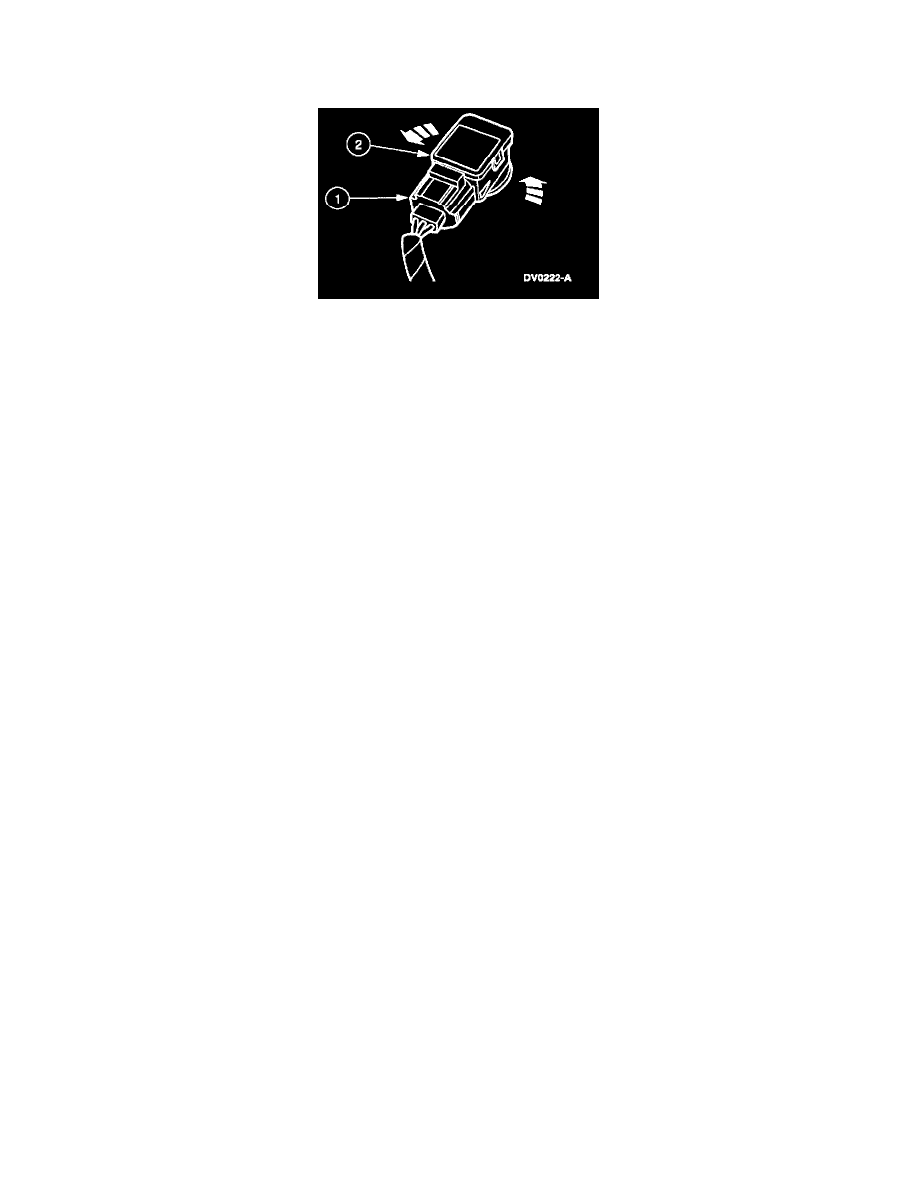

2. Remove the fuel tank pressure sensor.
1. Disconnect the electrical connector.
2. Press down and rotate the fuel tank pressure sensor counterclockwise and remove it from the fuel tank.
CAUTION: The fuel tank pressure sensor must be disengaged from the fuel tank before it can be removed. Failure to do so can cause damage to
the fuel tank pressure sensor or the fuel tank.
INSTALLATION
1. To install, reverse the removal procedure.
^
Carry out the evaporative emission system leak test. For additional information, refer to Evaporative Emission System Leak Test. See:
Powertrain Management/Emission Control Systems/Evaporative Emissions System/Testing and Inspection/Component Tests and General
Diagnostics/Component Tests/Evaporative Emission System Leak Test
^
Carry out the evaporative emission repair verification drive cycle. For additional information, refer to Evaporative Emission Repair
Verification Drive Cycle. See: Powertrain Management/Emission Control Systems/Evaporative Emissions System/Service and Repair
