Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

Page 1
background image

Throttle Position Sensor: Service and Repair

REMOVAL

1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the air cleaner assembly. For additional information, refer to Fuel Delivery and Air Induction.
3. Remove the accelerator control snow shield.

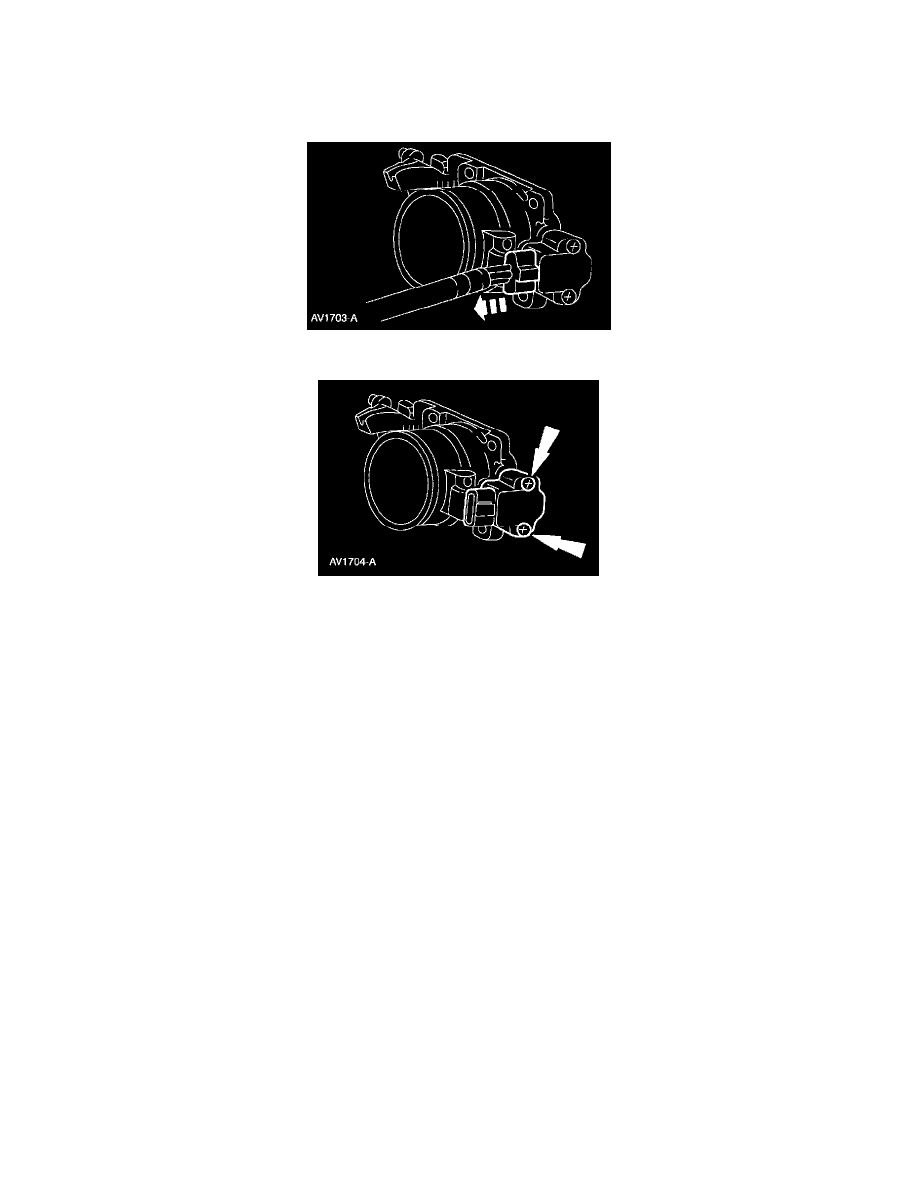

4. Disconnect the Throttle Position (TP) sensor electrical connector.

5. Remove the bolts and the sensor.

INSTALLATION

1. To install, reverse the removal procedure.
