Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Ignition Switch Lock Cylinder: Service and Repair
Ignition Lock Cylinder - Functional
Removal
1. Disconnect the battery ground cable and wait at least one minute.

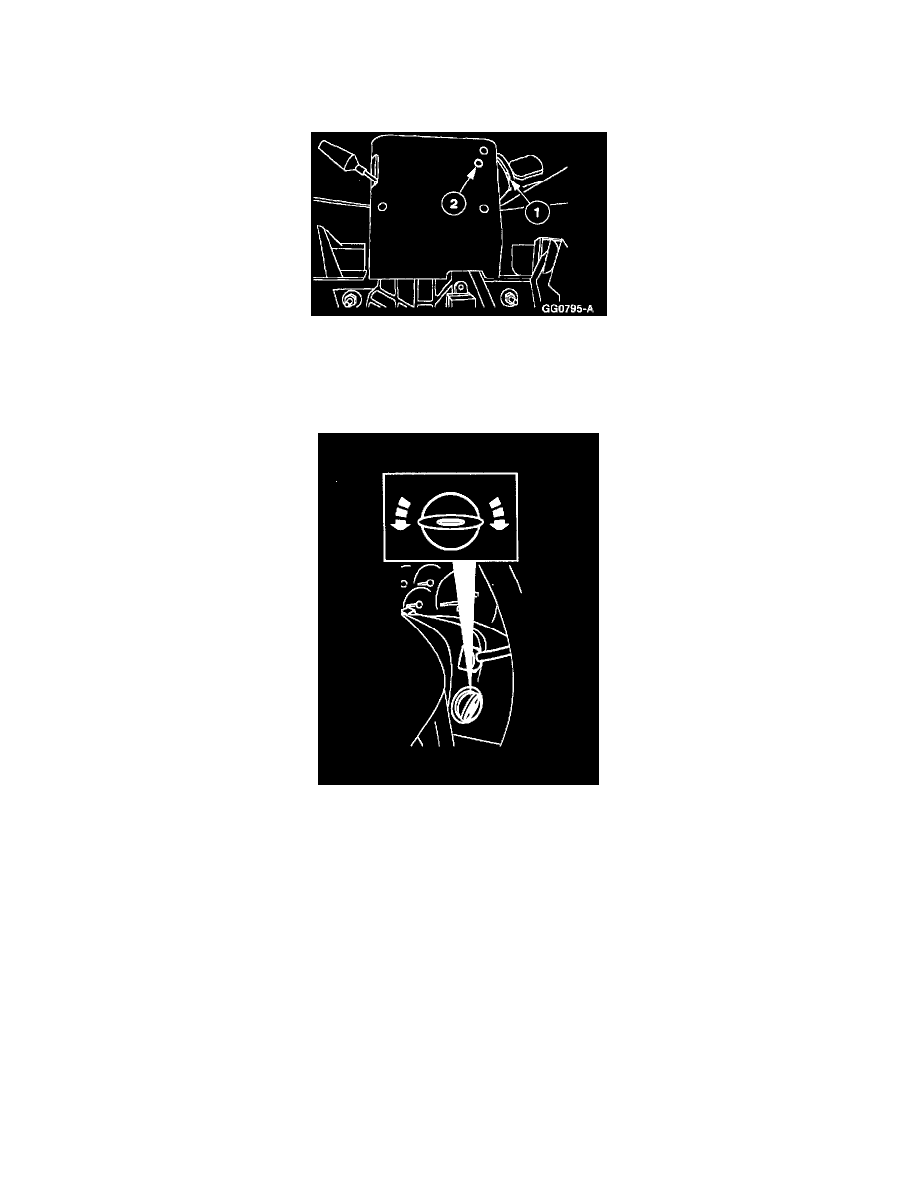

2. Remove the ignition switch lock cylinder.
1. Insert the ignition key and turn to the RUN position.
2. Press the ignition switch lock cylinder release pin while pulling out the ignition switch lock cylinder.
Installation
1. Follow the removal procedure in reverse order.
-
Verify ignition switch lock cylinder operation.
2. Prove out the air bag system.
