Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

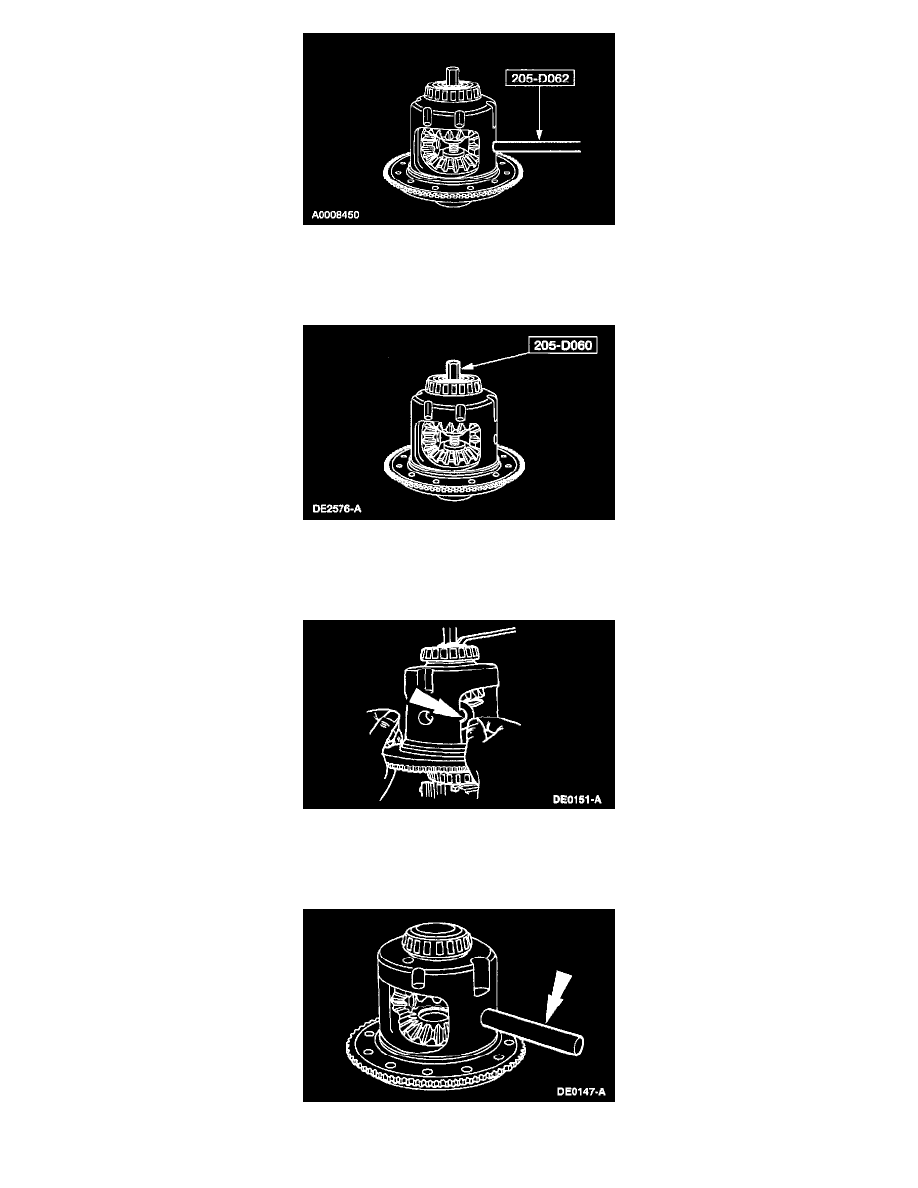

While holding the differential pinion gears in place, insert the special tool into the differential pinion shaft bore. Rotate the differential case until
the holes of both differential pinion gears align with those in the differential case.
12. CAUTION: Do not overtighten the special tool. Overtightening can damage the rear axle disc and plate kit.
Tighten the special tool enough to allow clearance to assemble the differential pinion thrust washers.
13. Note: During assembly, the differential pinion thrust washer and the differential pinion gear holes must align exactly with those in the differential
case.
Assemble the differential pinion thrust washers into the differential case.
-
Use a very small screwdriver to push the washers into place.
14. Remove all the tools from the differential case.
15. Install the differential pinion shaft.
