Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

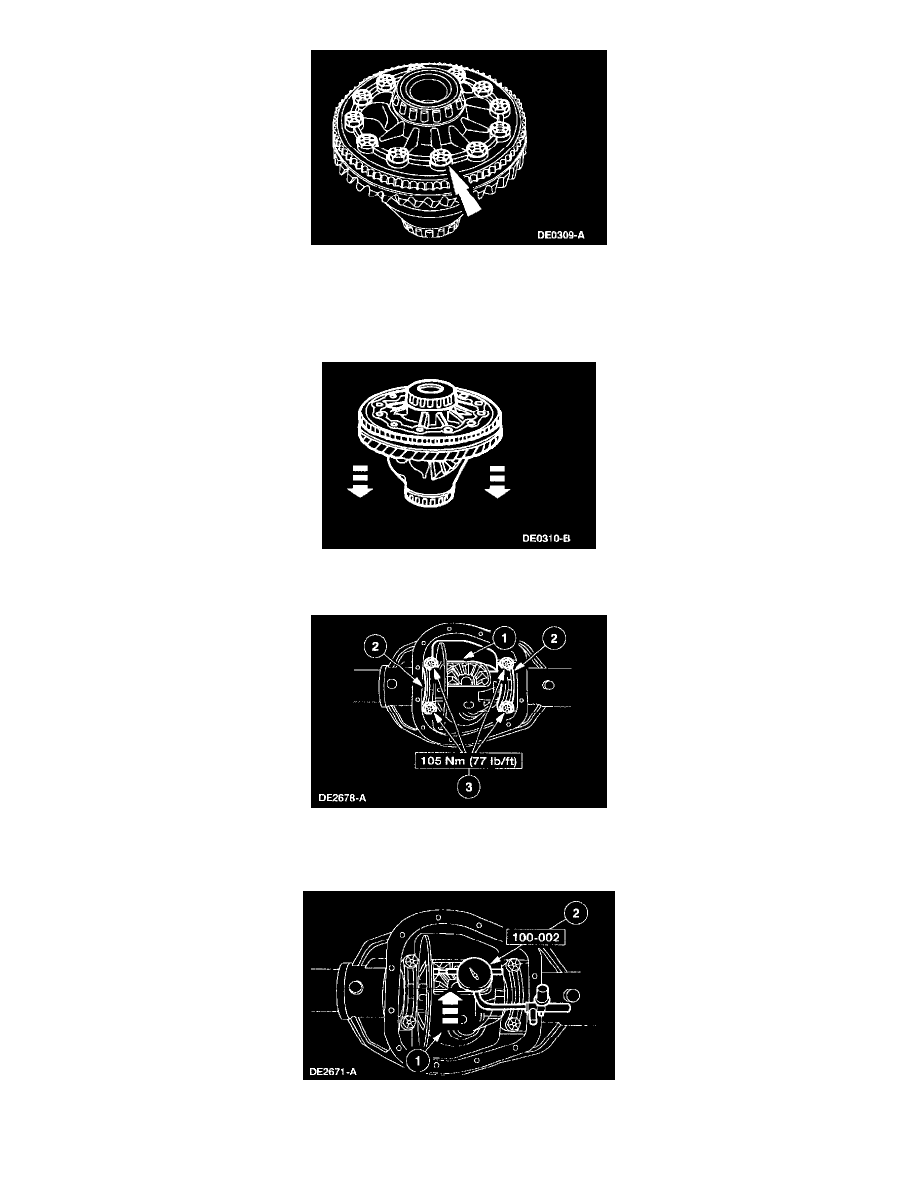

8. Remove the bolts.
9. CAUTION: Care should be taken not to damage the ring gear bolt hole thread.
Note: The anti-lock speed sensor ring cannot be reused once removed.
Insert a punch in the bolt holes. Drive off the ring gear and, if necessary, the anti-lock speed sensor ring.
10. Install the differential case.
1
Position the differential case assembly, including bearing clips and shims, in the carrier.
2
Install the differential bearing caps.
3
Install the differential bearing cap bolts.
11. Position the special tool.
1
Rotate the differential case to make sure the differential bearings are correctly seated.
2
Install the special tool.
