Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

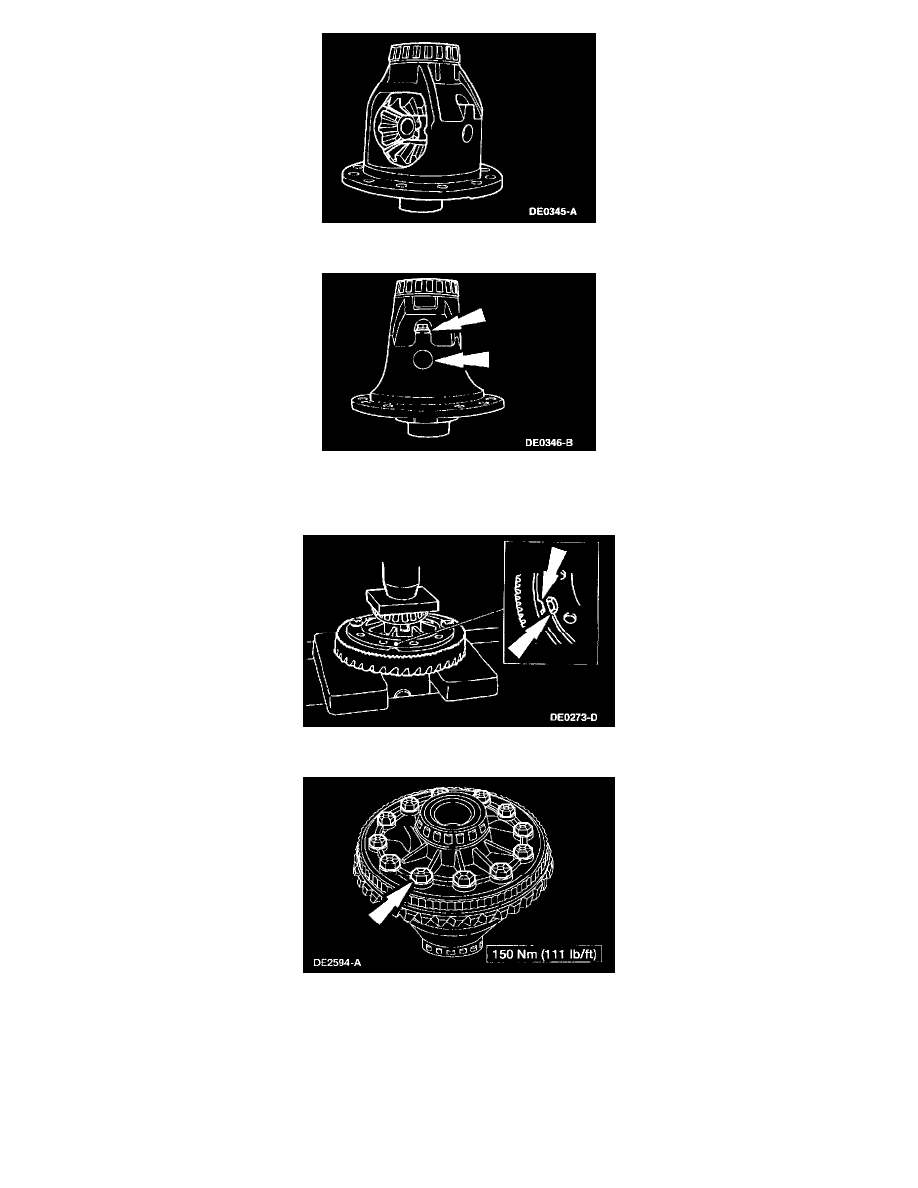

6. Rotate the differential pinion gears to align the differential pinion shaft bore.
7. Insert the differential pinion shaft, and install a new differential pinion shaft lock bolt finger-tight.
8. CAUTION: Make sure that the notches on the case flange and the anti-lock speed sensor ring are aligned.
Press the new anti-lock speed sensor ring and the ring gear on the differential case.
9. Install the bolts and tighten.
-
Apply Stud and Bearing Mount E0AZ-19554-BA or equivalent meeting Ford specification WSK-M2G349-A1 to the ring gear bolts.
10. Install new differential bearings, if removed.
11. Install the differential case.
Differential Case and Ring Gear-Traction-LOK(R)
