Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

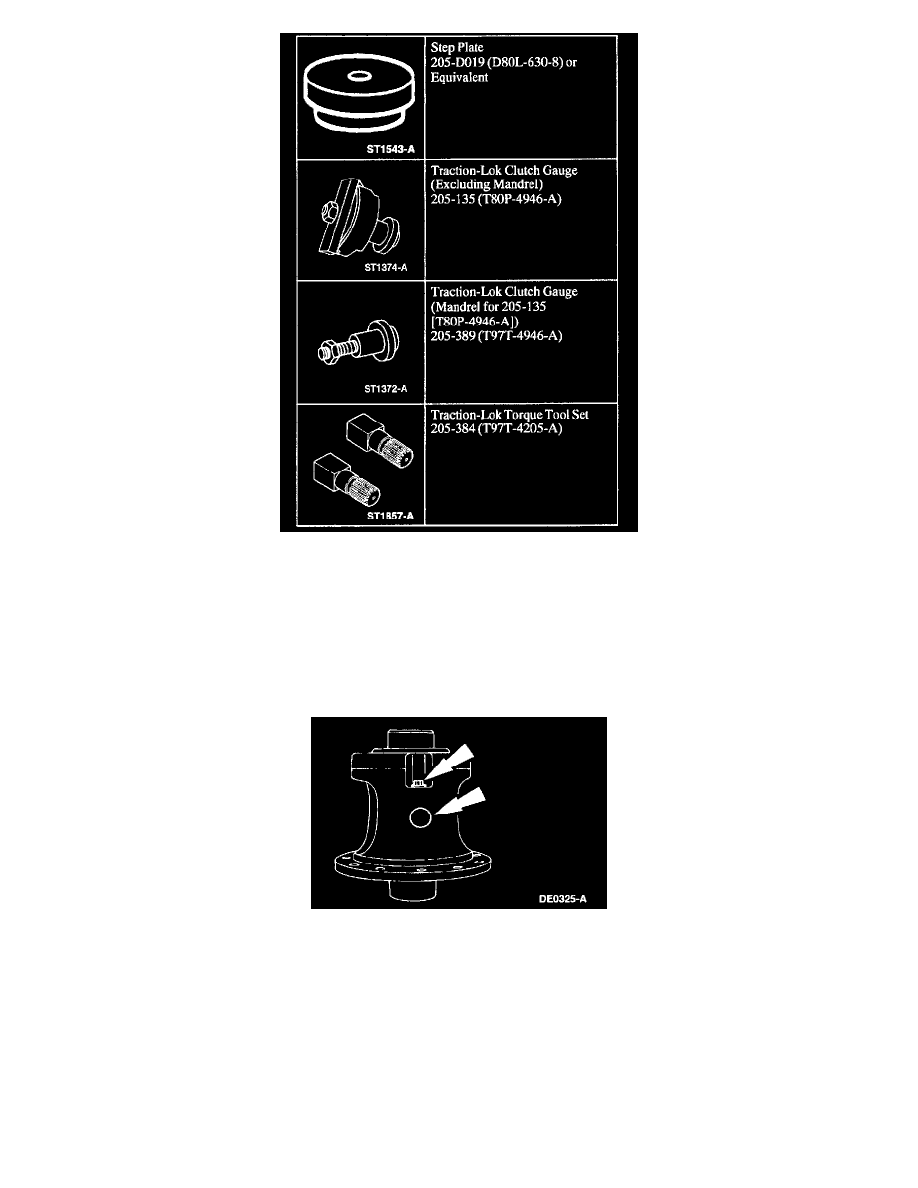

Special Tools
Disassembly
1. Remove the differential case.
2. Note: The differential bearings need not be removed to overhaul the Ford limited slip differential. If bearing removal is required, use the 2-Jaw
Puller.
Note: The anti-lock speed sensor ring cannot be reused once removed.
Remove the differential pinion shaft lock bolt and remove the differential pinion shaft.
-
If required, remove the ring gear and anti-lock speed sensor ring.
