Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Use a drive pinion bearing adjustment shim as a gauge for shim selection.
-
After the correct shim thickness has been determined, remove the special tool.

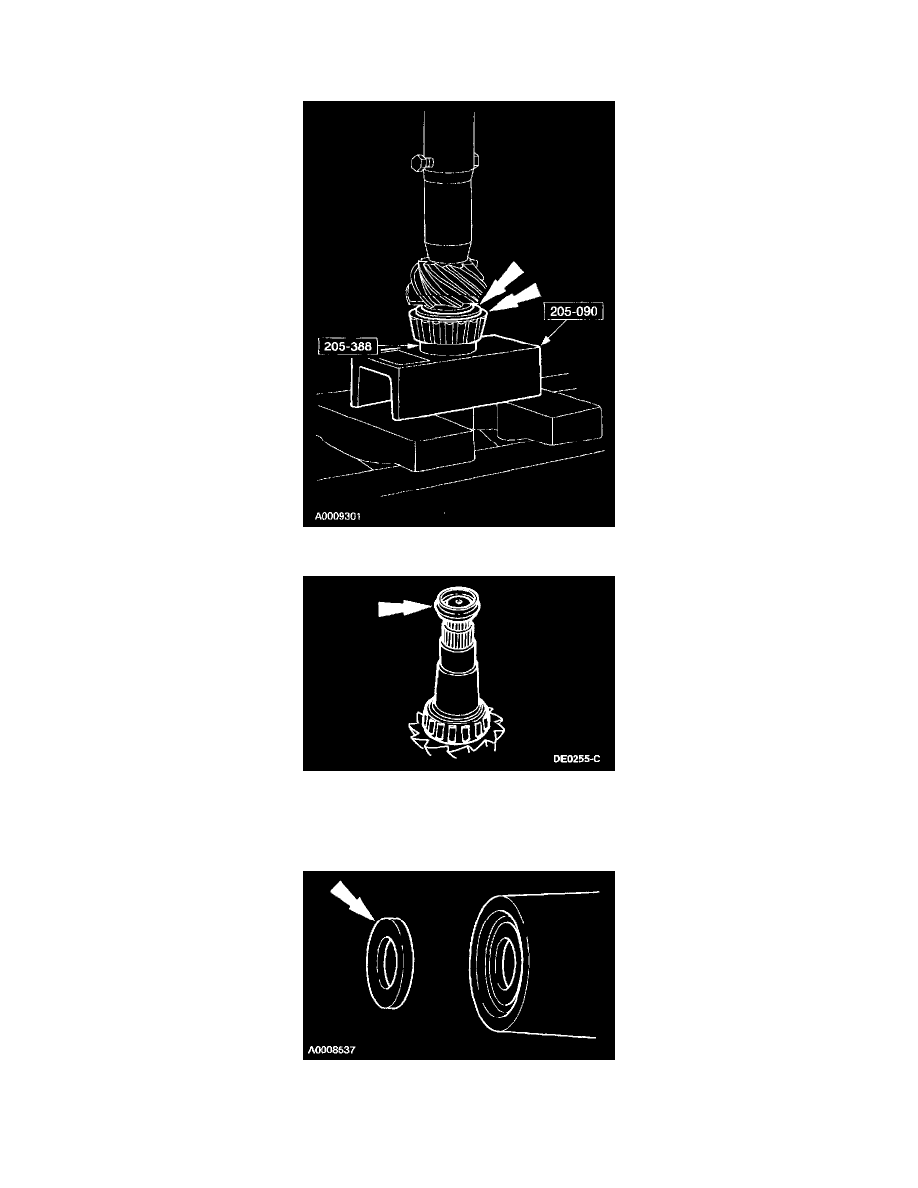

11. Using a press and the special tool, press the pinion bearing until it is firmly seated on the pinion and pinion shim.
12. Place a new drive pinion collapsible spacer on the pinion shaft against the pinion stem shoulder.
13. CAUTION: Installation without the correct tool can result in early seal failure. If the rear axle drive pinion seal becomes cocked during
installation, remove it and install a new one.
Install the outer pinion bearing cone and roller, the rear axle drive pinion shaft oil slinger and the rear axle drive pinion seal.
14. Note: Coat the lips of the rear axle drive pinion seal with Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification
ESA-M1C75-B.
