Power Window Switch: Service and Repair

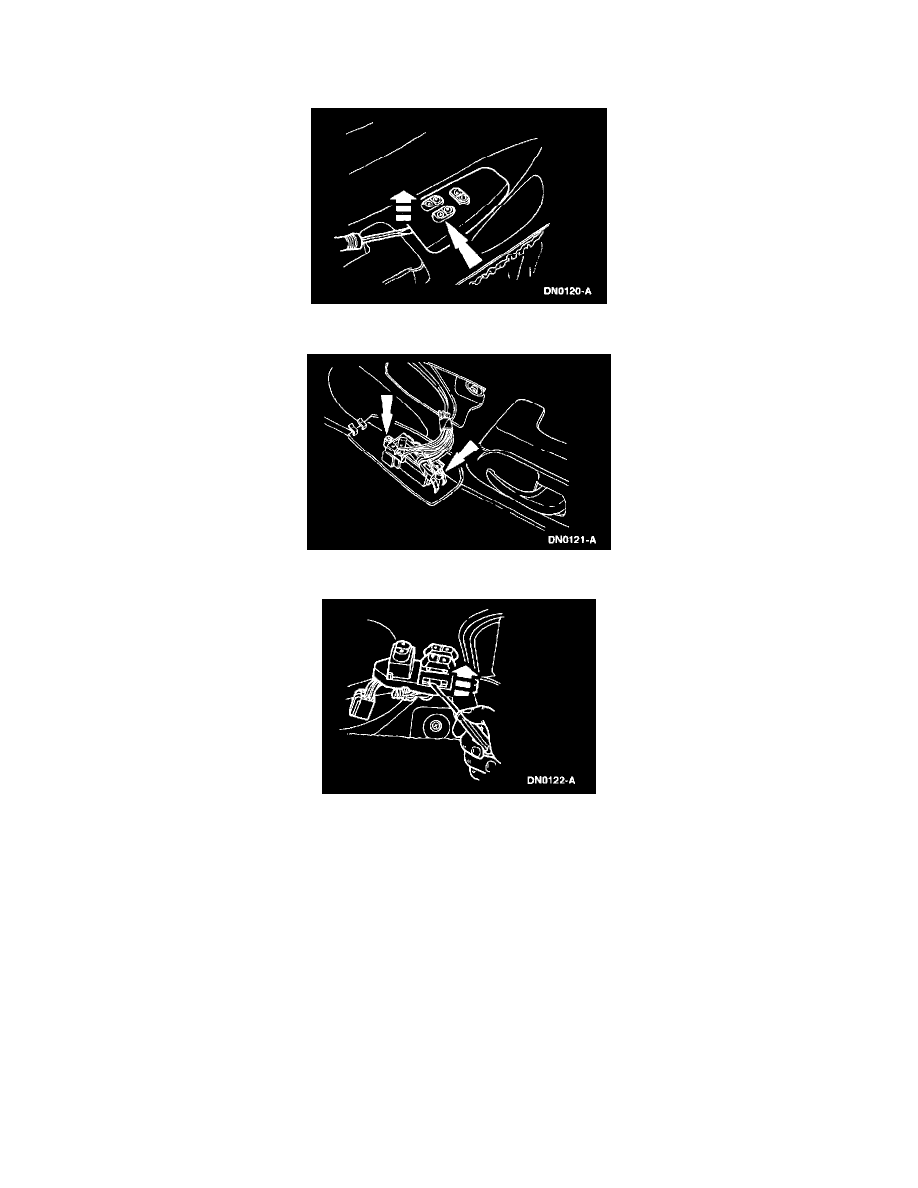

REMOVAL

1. Disconnect the battery ground cable; for additional information, refer to Battery.

2. Carefully pry the window regulator switch plate up.

3. Remove the two screws.

4. Carefully pry up and remove the window regulator control switch.

INSTALLATION

1. Follow the removal procedure in reverse order.
