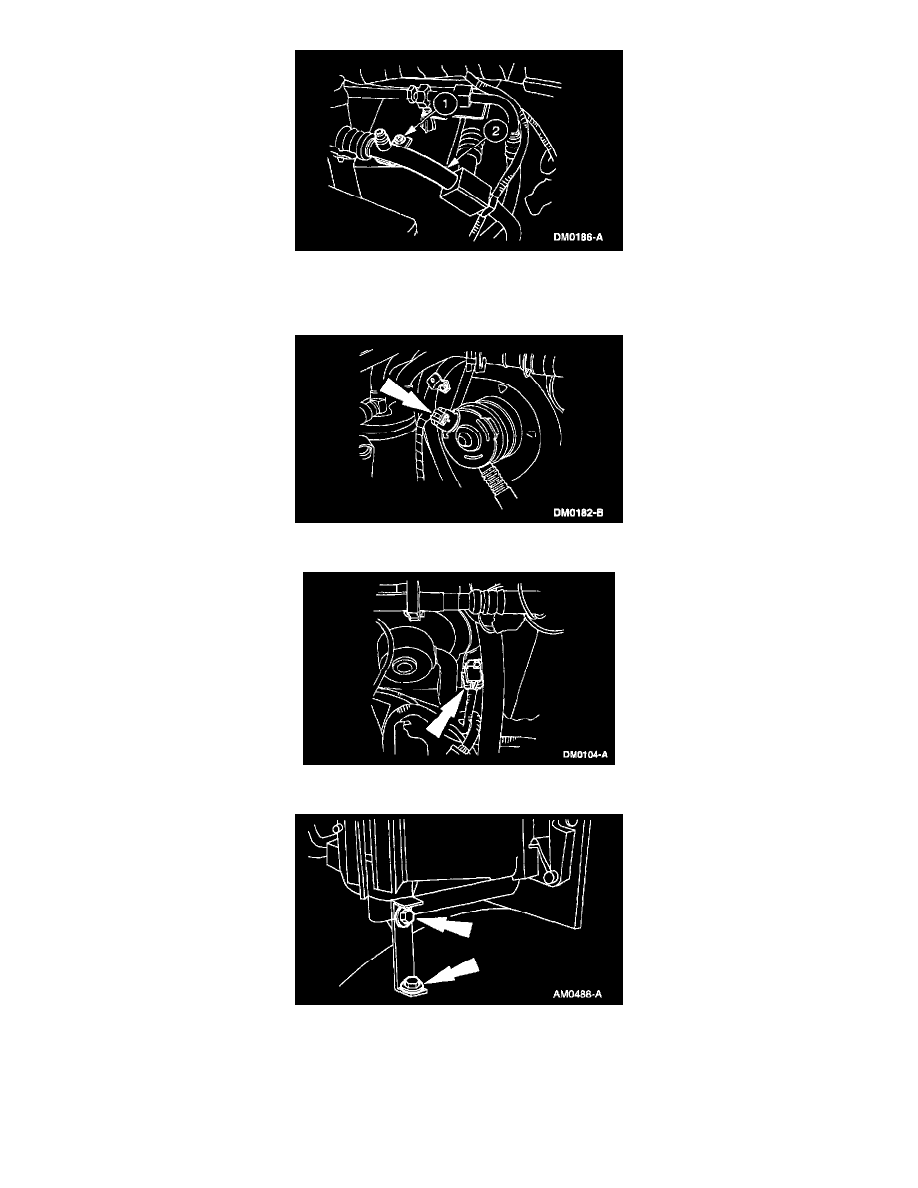

11. Move the A/C refrigeration tube assembly.

1. Remove screw.
2. Move the A/C refrigeration tube assembly.

12. Disconnect the blower motor electrical connector.

13. Disconnect the heater blower motor switch resistor electrical connector.

14. Remove the screws and the evaporator core housing support bracket.
