Econoline E350 1 Ton V8-5.4L SOHC VIN L (1999)
Heater Core Case: Service and Repair
Auxiliary A/C and Heater Assembly

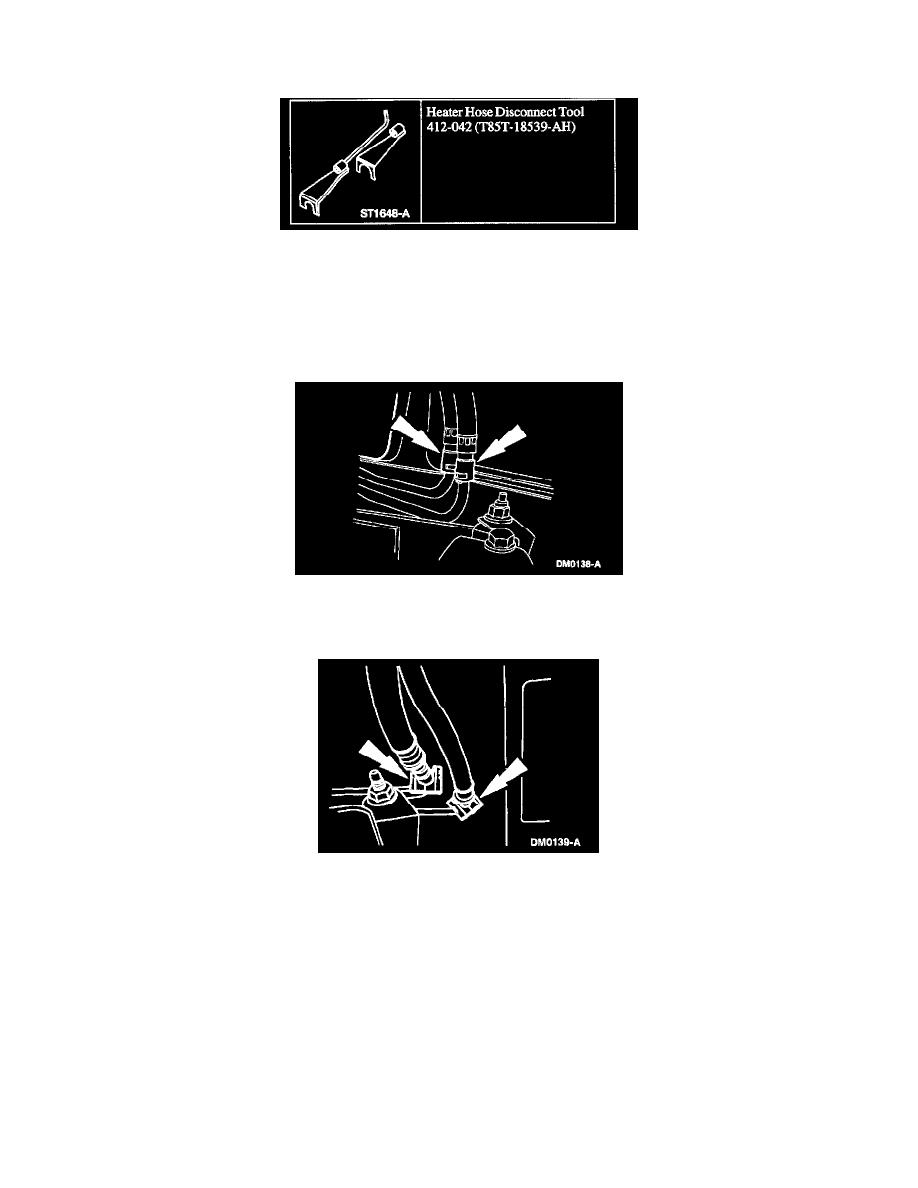

Heater Hose Disconnect Tool
Special Tool
REMOVAL
1. Discharge and recover the refrigerant.
2. Drain the engine cooling system.
3. Disconnect and plug the heater water hoses.
NOTE: Use the heater hose disconnect tool.
4. Disconnect the refrigerant line spring lock couplings.
5. If equipped, remove the third, fourth and fifth bench seats as required.
6. If equipped, remove the trim panels.
^
Remove the LH center bolster trim panel.
^
Remove the quarter trim rear upper panel.
^
Remove the lower rear body side trim panel.
