Econoline E350 1 Ton V8-5.4L SOHC VIN L (1999)
Wiper Arm: Service and Repair
Mounting Arm and Pivot Shaft
REMOVAL
1. Remove the windshield wiper pivot arms.
NOTE: The windshield wiper mounting arm and pivot shaft is replaced as an assembly.
2. Remove the cowl top vent panels.

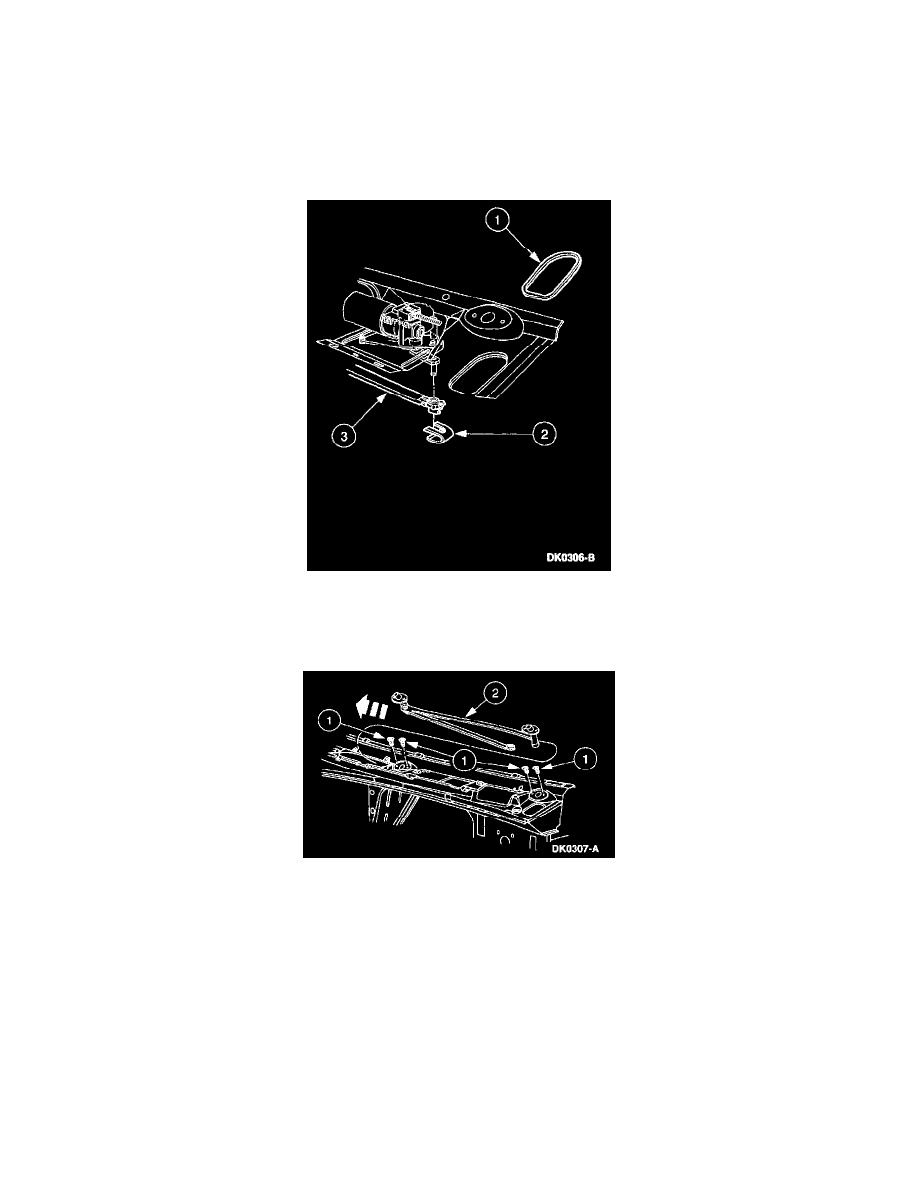

3. Disconnect the windshield wiper mounting arm and pivot shaft.
1
Remove the access cover from the dash panel.
2
Remove the retaining clip.
3
Disconnect the windshield wiper mounting arm and pivot shaft from the windshield wiper motor.
4. Remove the windshield wiper mounting arm and pivot shaft.
1
Remove the screws.
2
Remove the windshield wiper mounting arm and pivot shaft.
INSTALLATION
