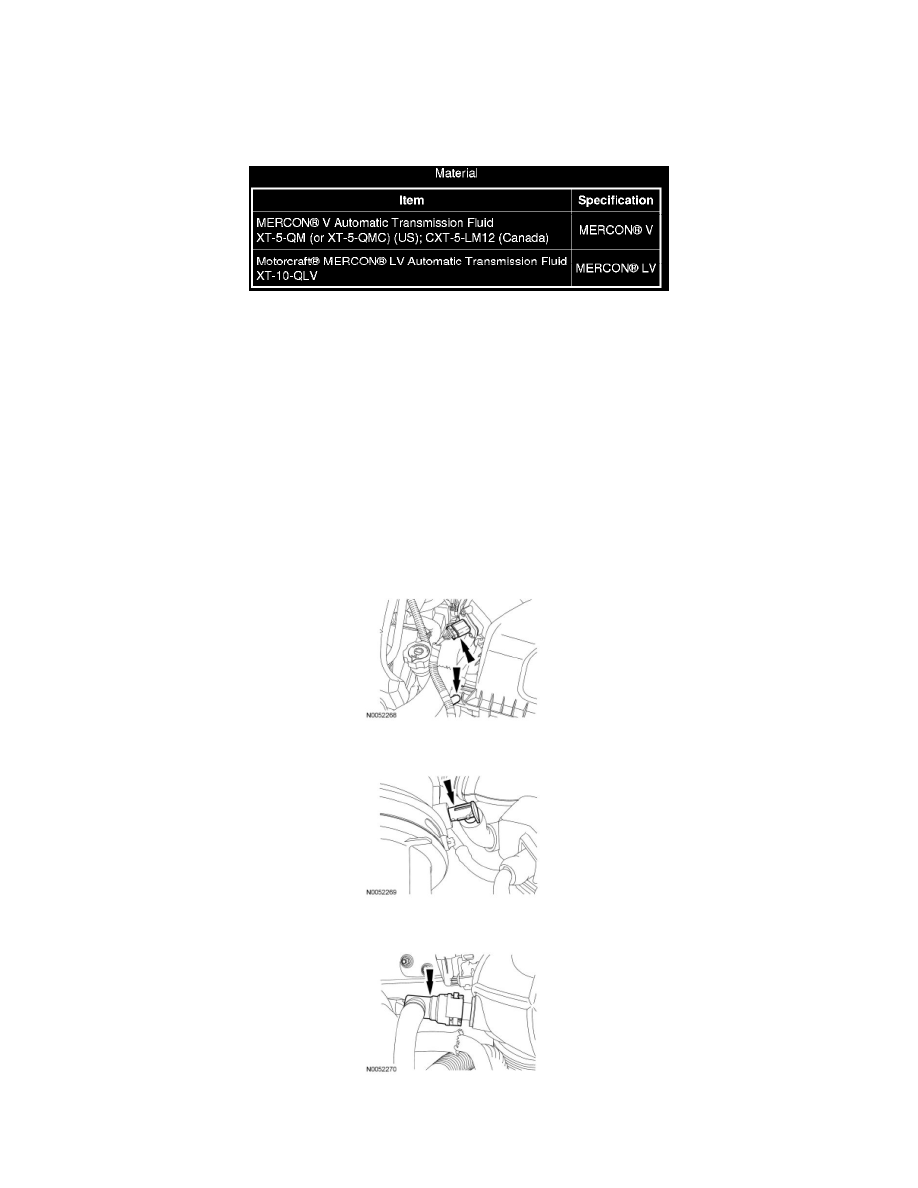

Transmission Speed Sensor Replacement | Turbine Shaft Speed Sensor
23. Route the coolant hoses in the transmission fluid filler tube.
24. Place the manual control lever in DRIVE.
1. Rotate the manual control lever clockwise until it stops.
2. Rotate the manual control lever counterclockwise one detent until it stops.
25. Unlock the selector lever cable adjuster by sliding the locking tab over.
26. Slide the cable end forward or backward to align it with the manual control lever.
27. With the adjuster locking tab released, connect the selector lever cable end to the manual control lever.
