Escape 2WD L4-2.5L Hybrid (2010)
Air Duct: Removal and Replacement

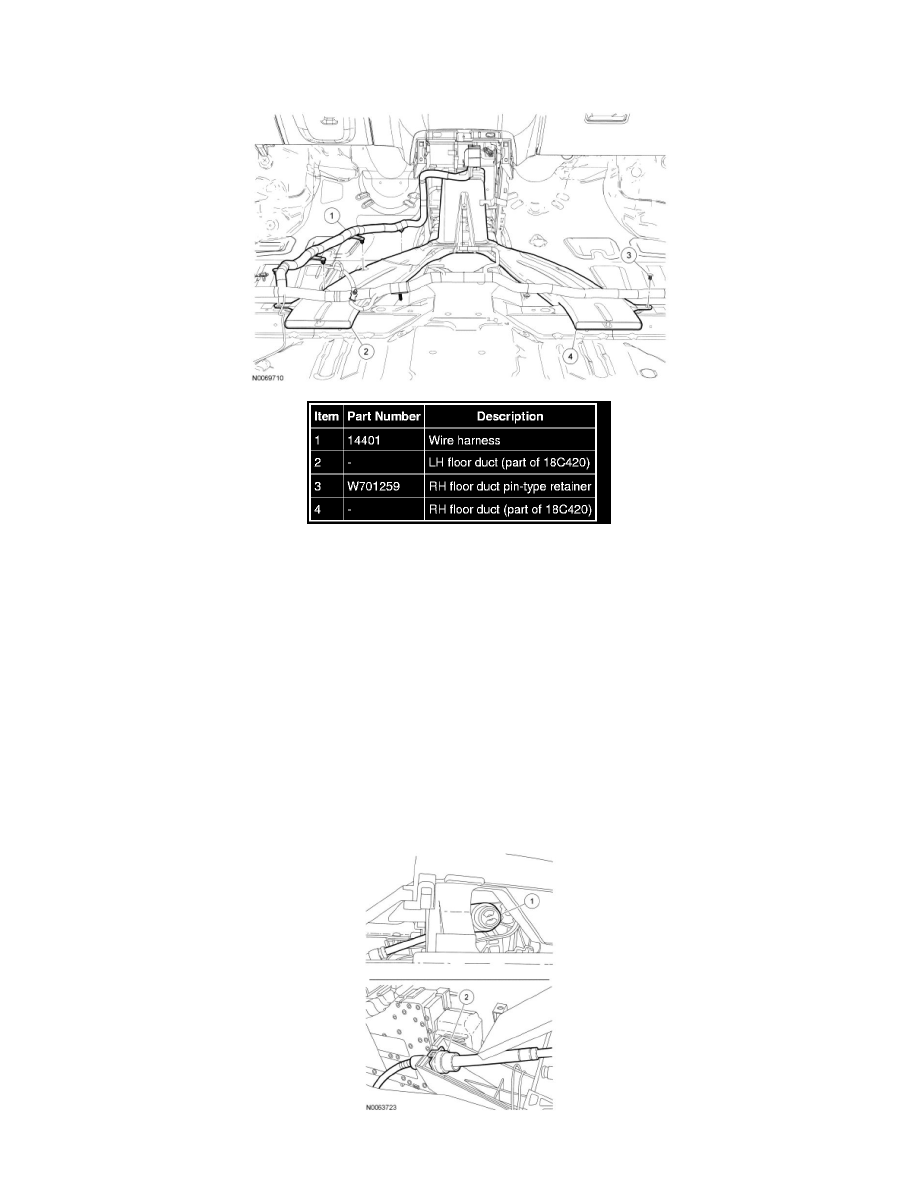

Footwell Duct - Rear
Removal and Installation
All vehicles
1. Remove the driver and front passenger seats. For additional information, refer to Seats.
2. Remove the floor console. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.
3. Remove the front door scuff plate trim panels and the lower A-pillar trim panels.
Vehicles with automatic transmission
4. Detach the selector lever cable from the gearshift assembly.
1. Disconnect the selector lever cable end from the gearshift lever.
2. Remove the selector lever cable from the bracket.
All vehicles
