Ford Workshop Service and Repair Manuals

Escape 2WD L4-2.5L Hybrid (2010)

• Powertrain Management
• Emission Control Systems
• Evaporative Emissions System

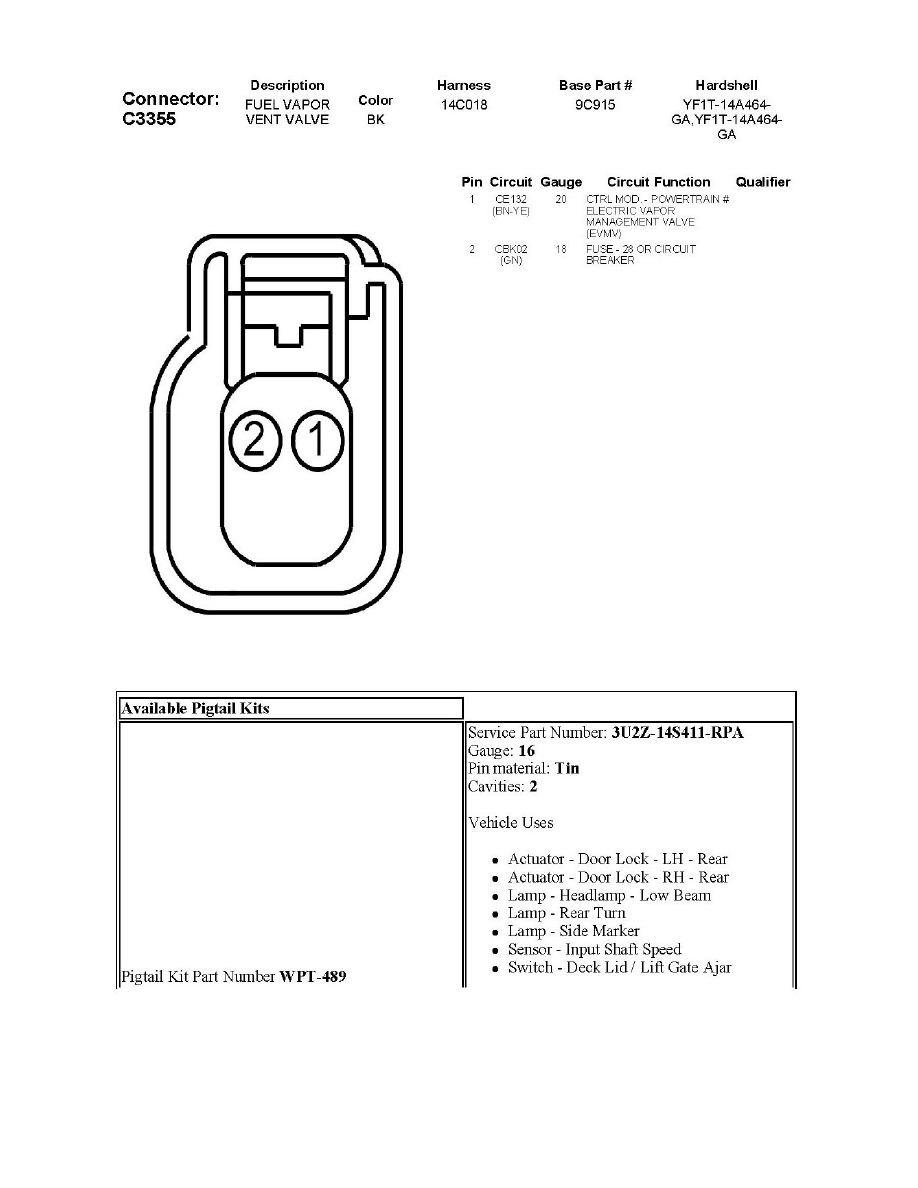

• Evaporative Check Valve
• Component Information
• Diagrams
