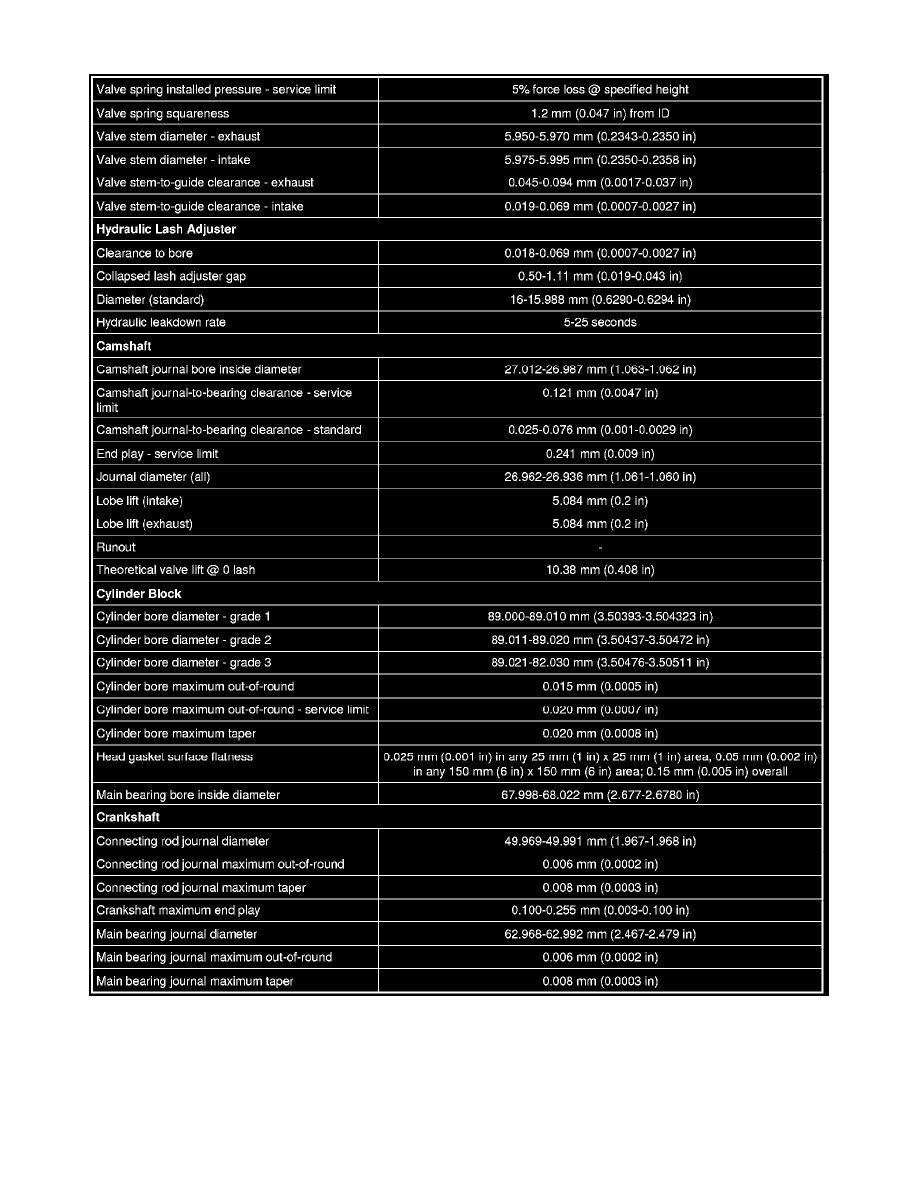

Connecting Rod Bearing: Specifications

Engine, Cooling and Exhaust
Engine
Cylinder Block Assembly
Connecting Rod Bearing
Component Information
Specifications
