Escape 4WD V6-181 3.0L DOHC VIN 1 Duratec (2003)
Door Lock Cylinder: Service and Repair
DOOR LOCK CYLINDER
REMOVAL
NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair
package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.
1. NOTE: Make sure the window glass is in the raised position.
Remove the exterior front door latch.

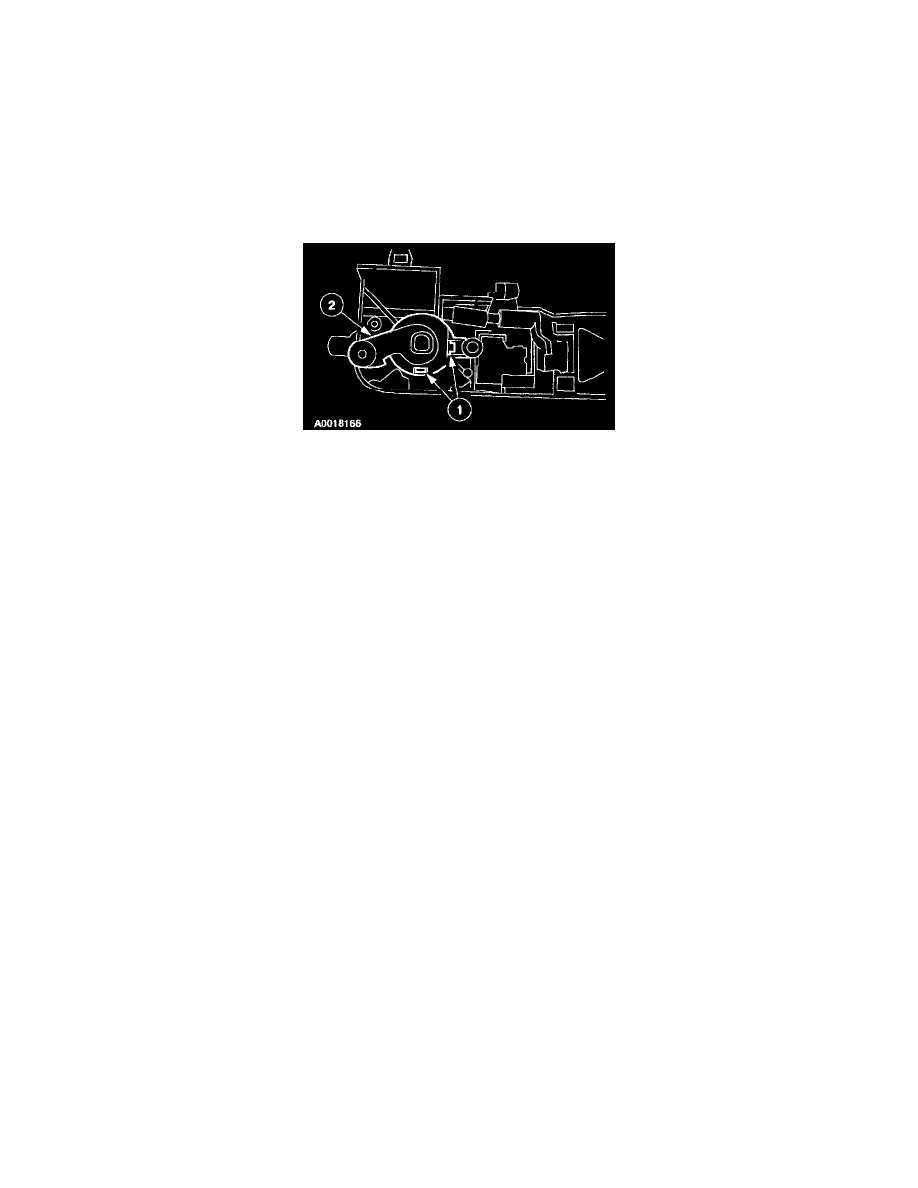

2. Remove the door lock cylinder.
1
Release the clips.
2
Remove the lock cylinder.
INSTALLATION
1. To install, reverse the removal procedure.
