Escape 4WD V6-181 3.0L DOHC VIN 1 Duratec (2003)
Fuel Tank Mounting Straps: Service and Repair
REMOVAL
1. Raise and support the vehicle.
2. Use a suitable jack to support the fuel tank.

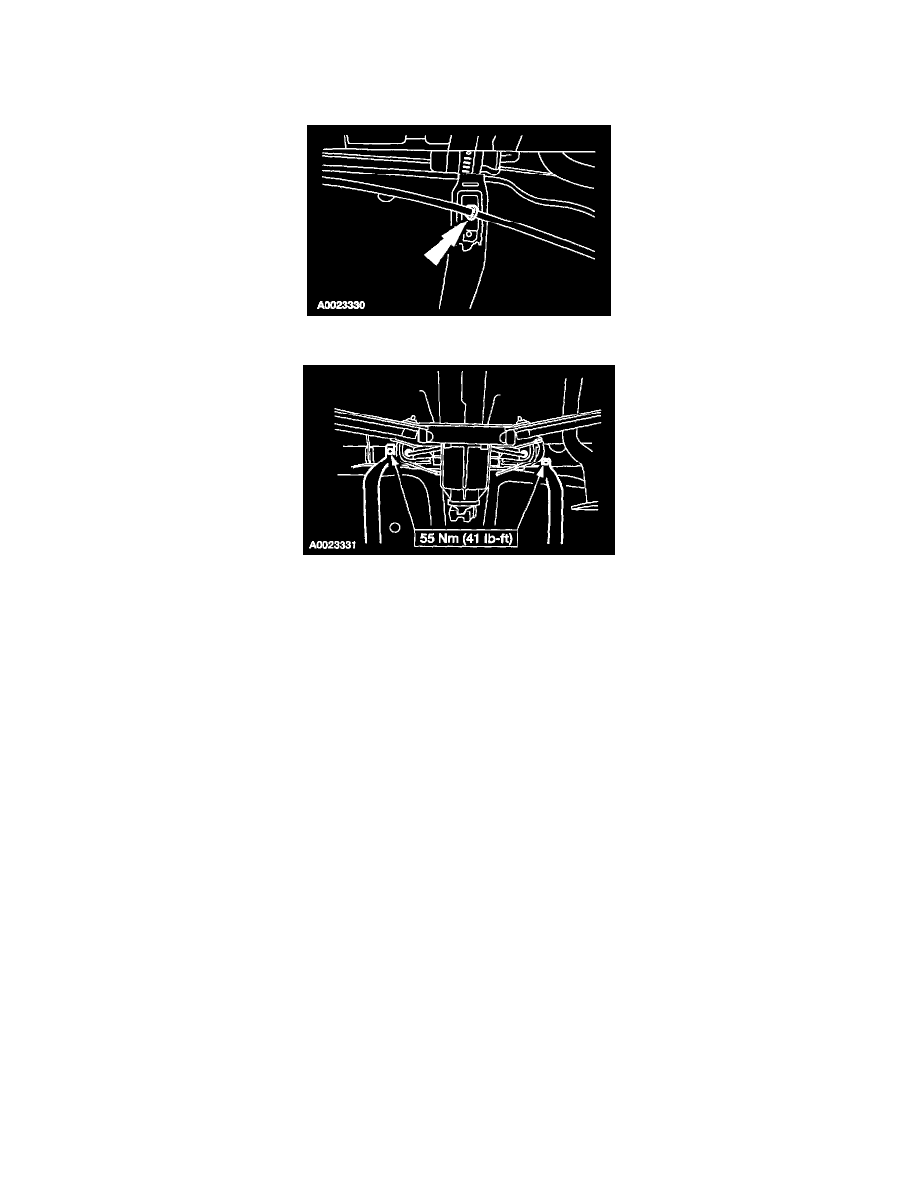

3. Disconnect the pin-type retainer from the fuel tank strap and position the parking brake cable aside.
4. Remove the bolts and the fuel tank straps.
NOTE: For 4WD vehicles, it will be necessary to disconnect a wiring harness clip from the fuel tank strap.
INSTALLATION
1. To install, reverse the removal procedure.
