Escape 4WD V6-182 3.0L VIN 1 SFI (2002)
Front Bumper Reinforcement: Service and Repair
FRONT BUMPER
Removal and Installation
1. Remove the front bumper cover.
2. Remove the front bumper.

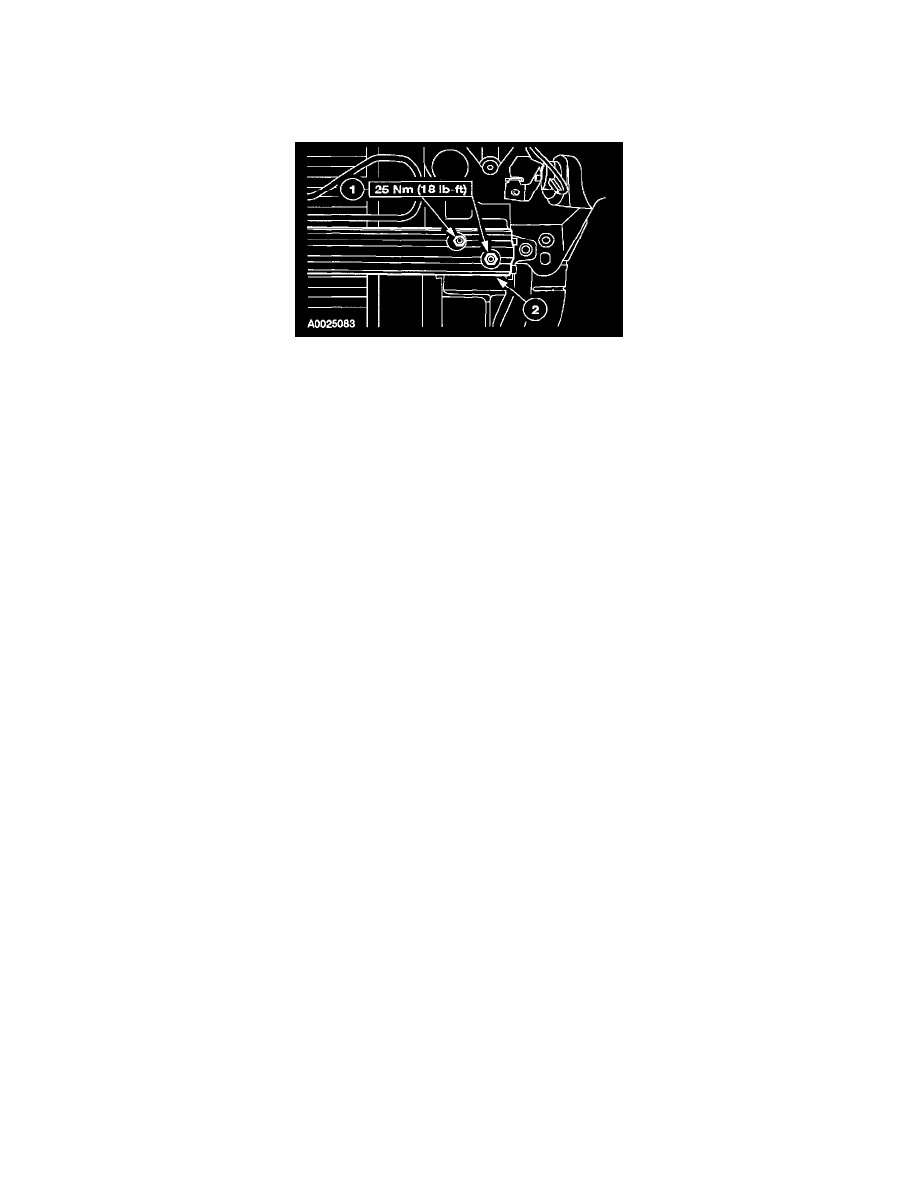

1
Remove the four front bumper nuts (two each side).
2
Remove the front bumper.
3. To install, reverse the removal procedure.
