Escape 4WD V6-182 3.0L VIN 1 SFI (2002)

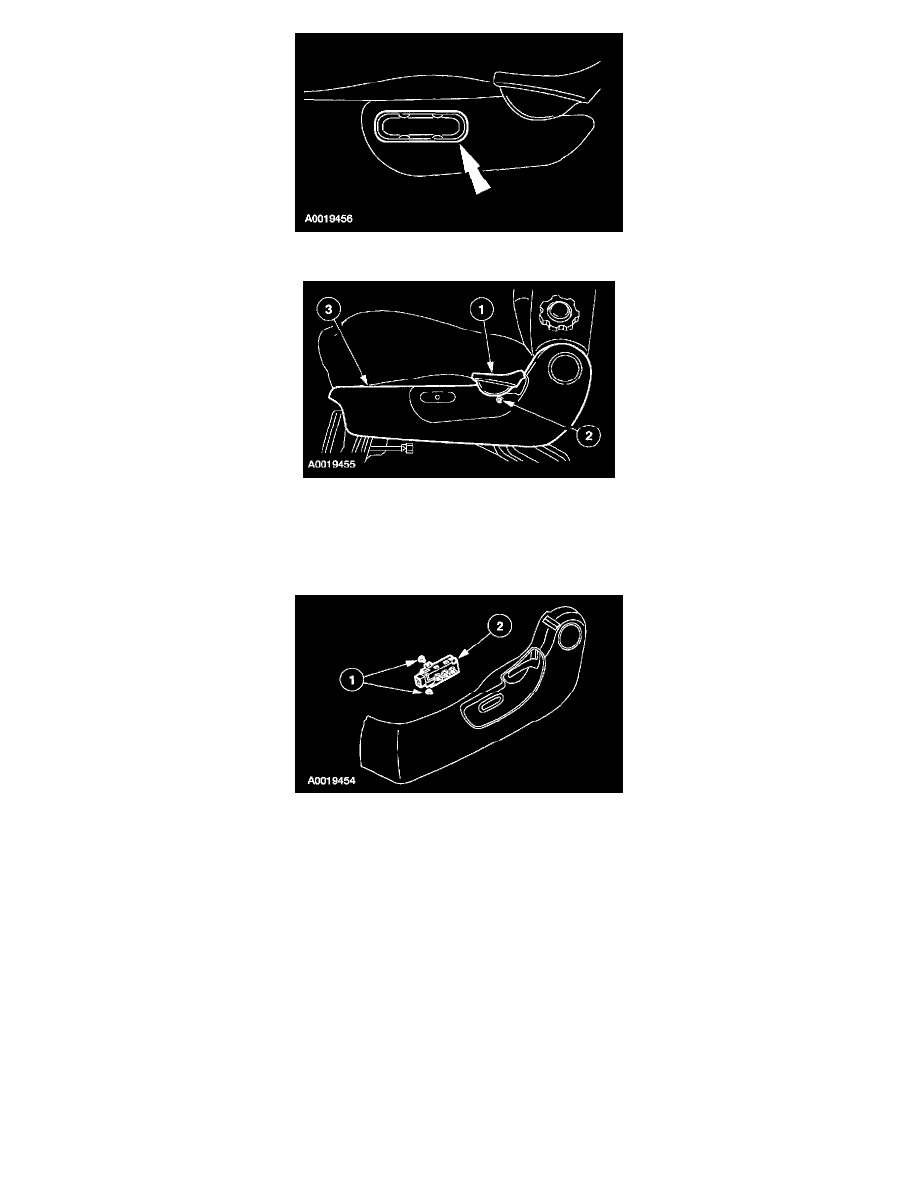

2. Remove the seat control switch knob.
3. Remove the front seat cushion side shield.
1
Remove the seat backrest handle.
2
Remove the screw.
3
Remove the shield.
^
Disconnect the electrical connector.
4. Remove the seat control switch.
1
Remove the screws.
2
Remove the switch.
INSTALLATION
1. To install, reverse the removal procedure.
