Escape 4WD V6-182 3.0L VIN 1 SFI (2002)

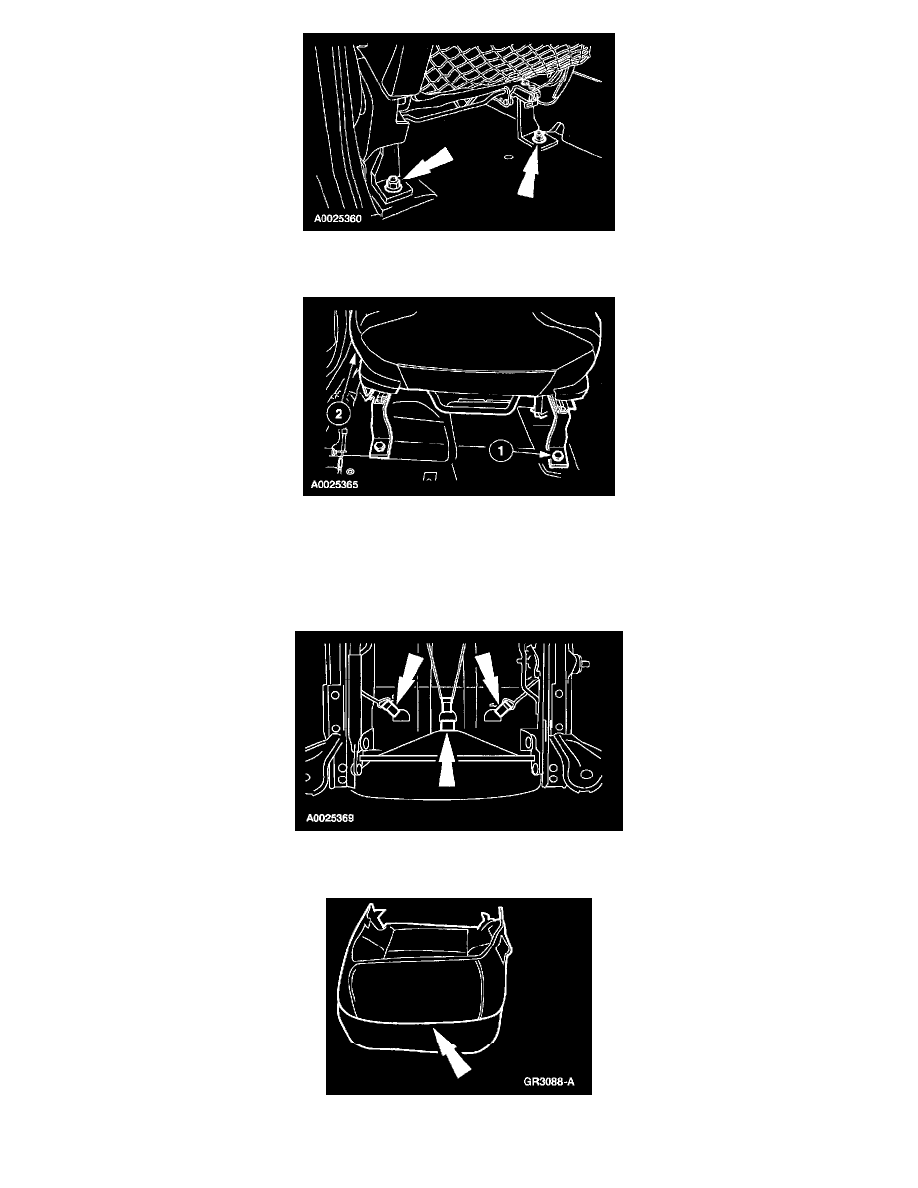

19. Remove the seat track to floor nuts.
20. Position the passenger seat rearward.
21. Remove the passenger seat.
1
Remove the seat track to floor bolts.
2
Remove the passenger seat.
CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result
in damaged components.
22. Disconnect the seat cushion trim cover J-clips.
23. Remove the front seat cushion trim and pad from the front seat cushion frame.
24. Separate the front seat cushion trim from the front seat cushion pad.
