Escape 4WD V6-182 3.0L VIN 1 SFI (2002)

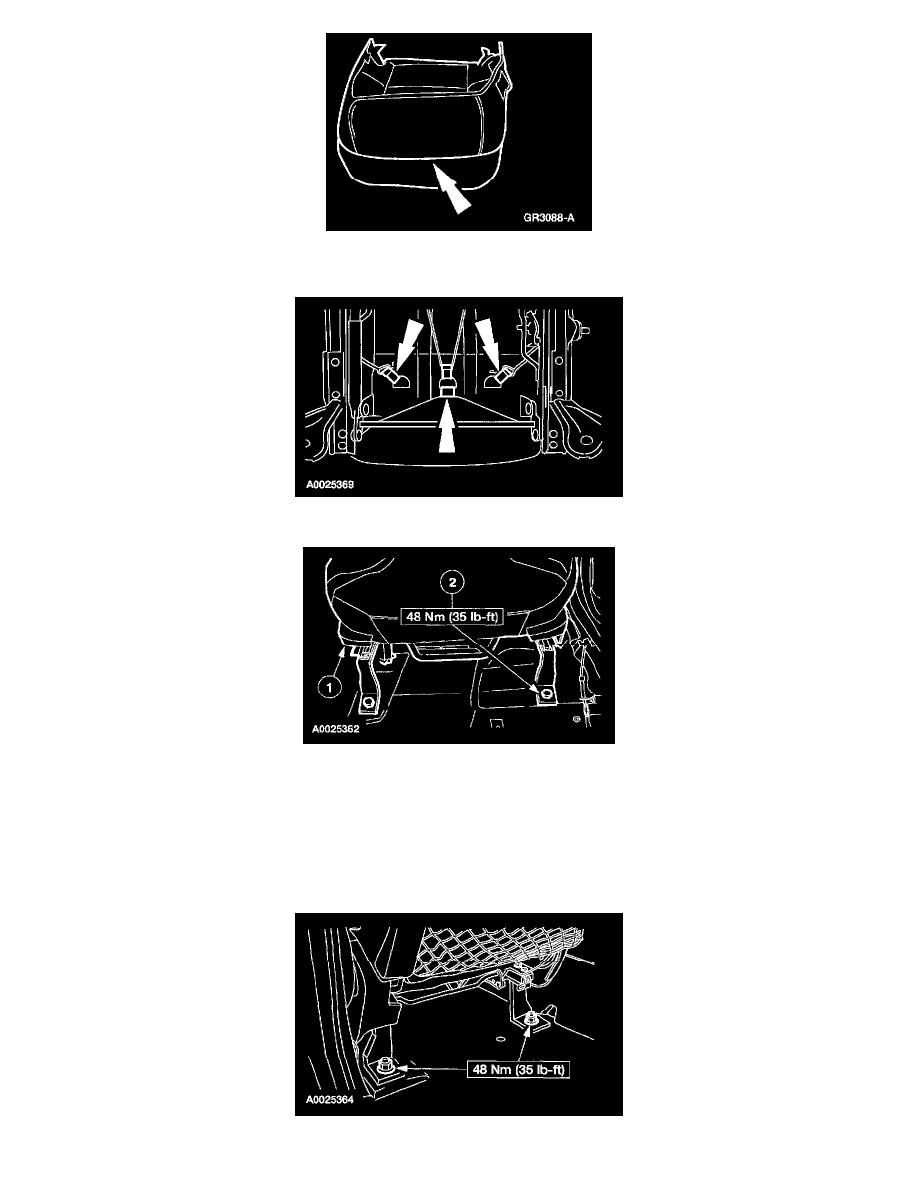

1. Install the front seat cushion trim to the front seat cushion pad.
2. Install the front seat cushion trim and pad to the front seat cushion frame.
3. Connect the seat cushion trim cover J-clips.
4. Install the passenger seat.
1
Position the passenger seat.
2
Install the seat track to floor bolts.
CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result
in damaged components.
5. Position the passenger seat forward.
6. Install the seat track to floor nuts.
