Escape 4WD V6-182 3.0L VIN 1 SFI (2002)
Rocker Arm Assembly: Service and Repair
Roller Followers

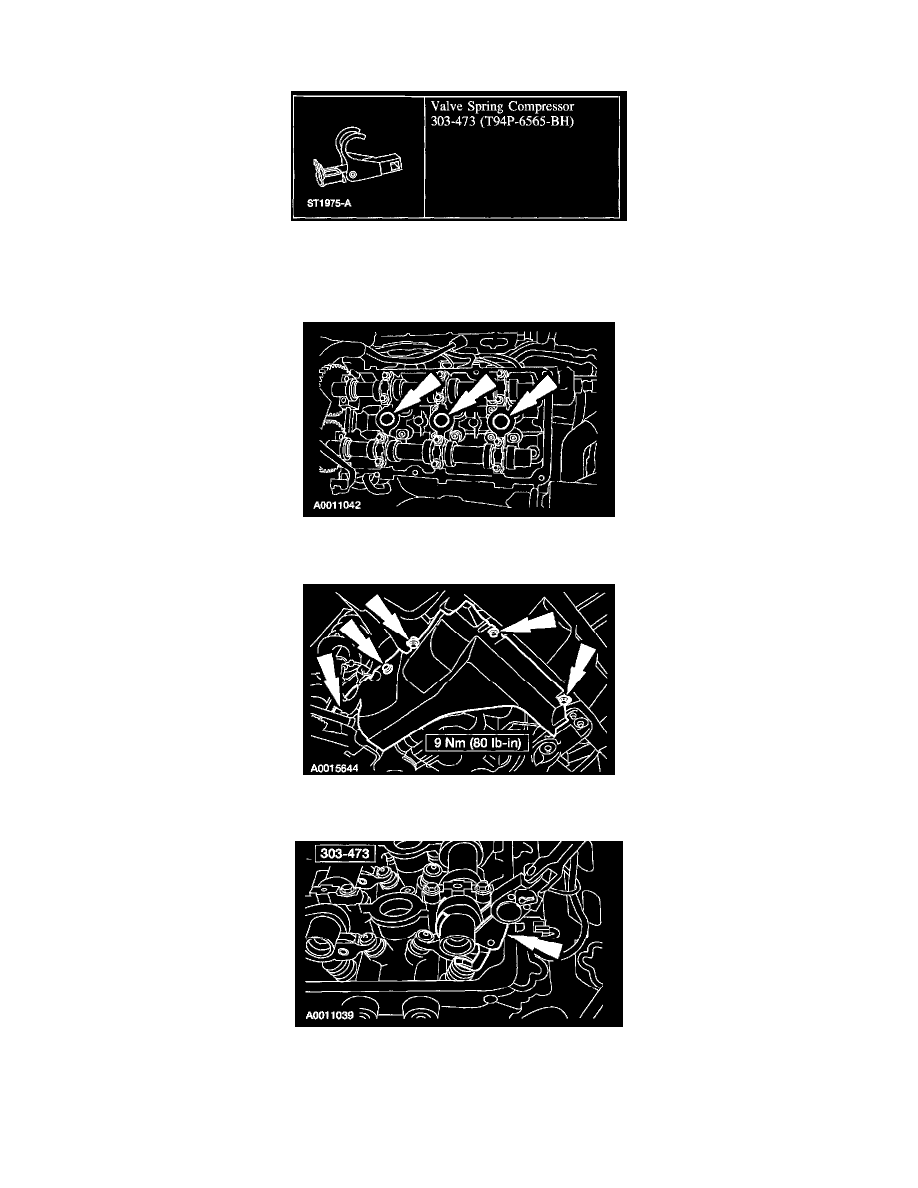

Special Tool(s)
Removal and Installation
1. Remove the LH and RH valve covers.
2. Remove the LH and RH spark plugs.
3. Remove the RH front wheel.
4. Remove the splash shield.
5. Rotate the crankshaft until the camshaft lobe is pointing directly away from the follower.
6. Using the special tool, remove the followers.
7. To install, reverse the removal procedure.
-
Lubricate the camshaft followers with Super Premium SAE 5W-20 Motor Oil XO-5W20-QSP or equivalent meeting Ford specifications
WSS-M2C153-H.
