Powertrain Control Module: Service and Repair

REMOVAL

1. Disconnect the battery ground cable.

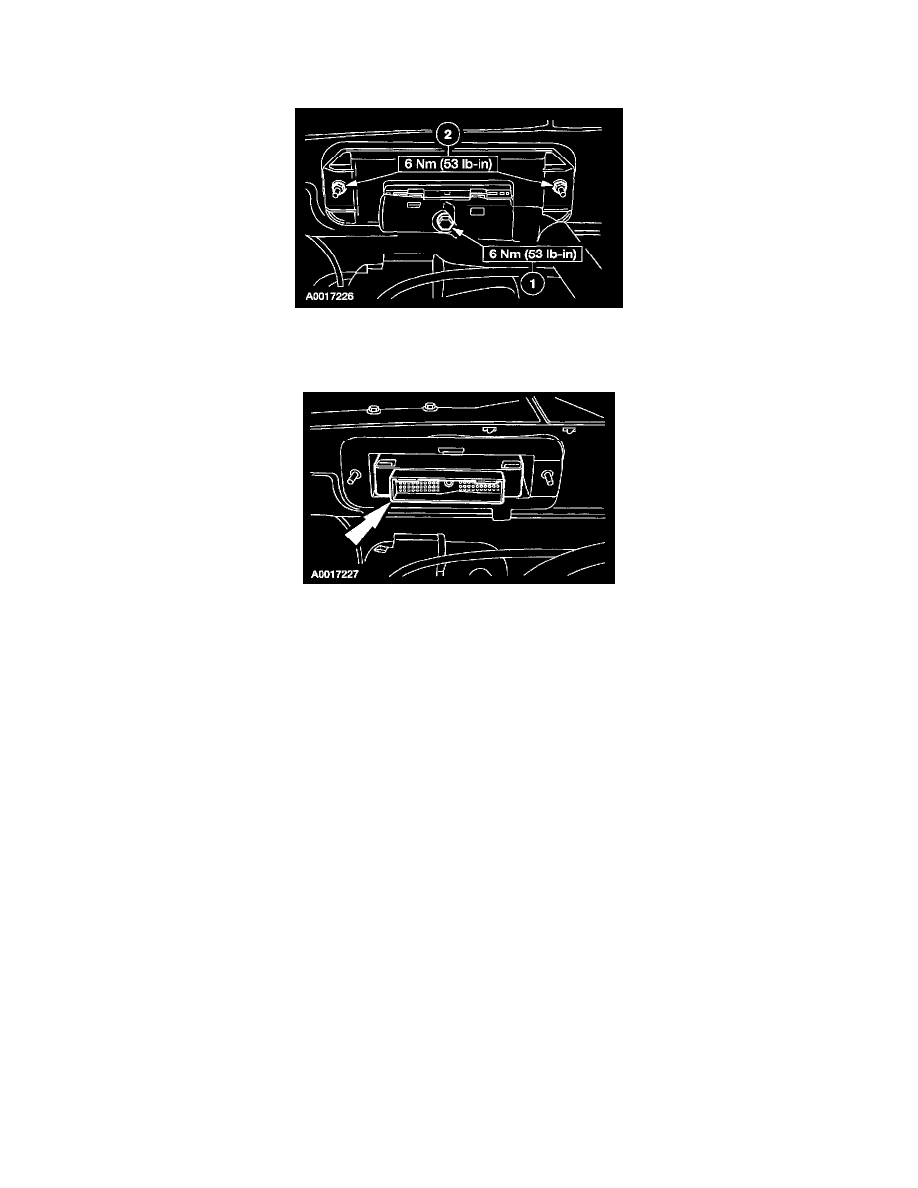

2. Remove the Powertrain Control Module (PCM) cover.

1

Loosen the bolt and disconnect the electrical connector.

2

Remove the nuts and the cover.

3. Remove the PCM.

INSTALLATION

1. To install, reverse the removal procedure.
