Escape 4WD V6-182 3.0L VIN 1 SFI (2002)
Refrigerant Pressure Sensor / Switch: Service and Repair
Pressure Cutoff Switch
REMOVAL

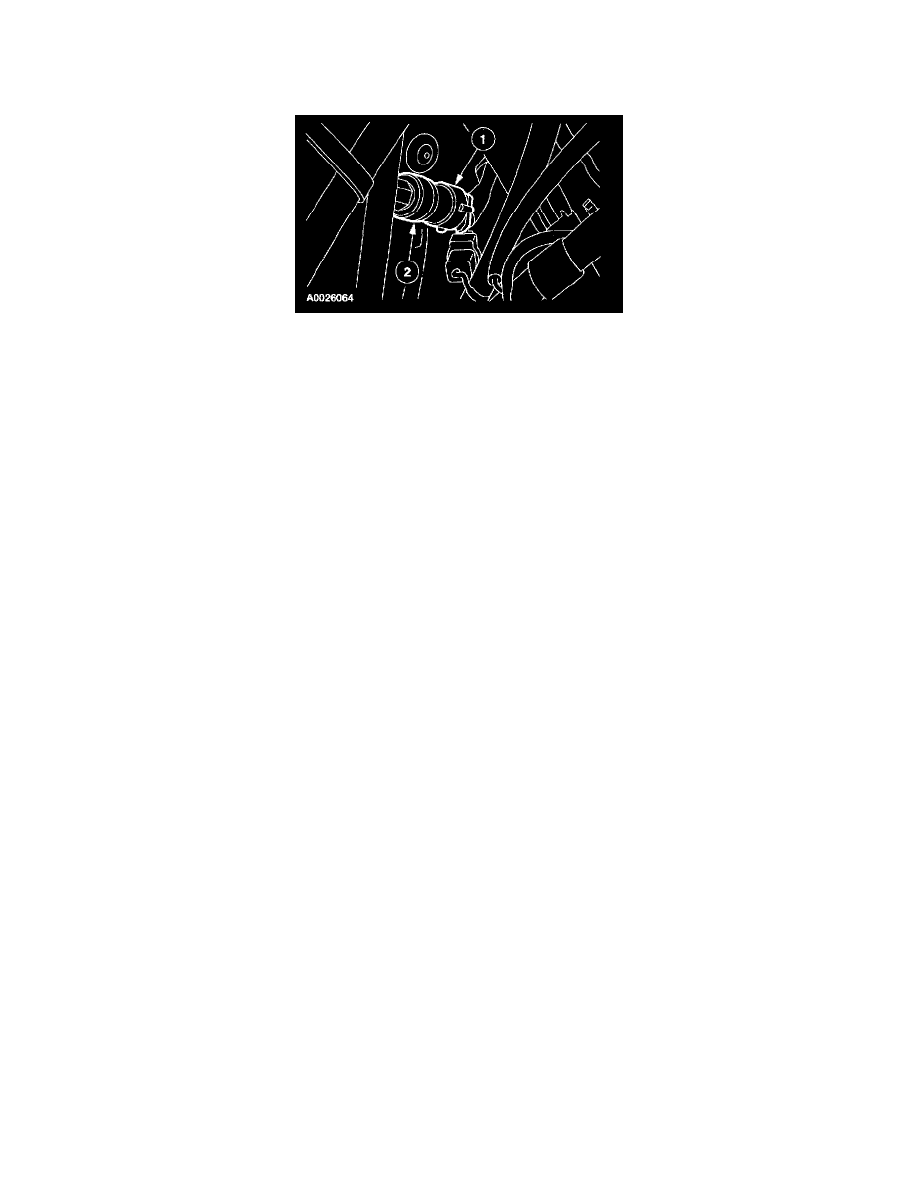

1. Remove the pressure cut-off switch.
1
Disconnect the A/C pressure cut-off switch electrical connector.
2
Remove the A/C pressure cut-off switch.
INSTALLATION
1. To install, reverse the removal procedure.
^
Lubricate the O-ring seals with PAG Compressor Oil YN-12-C or equivalent meeting Ford specification WSH-M1C231-B.
