Escape 4WD V6-182 3.0L VIN 1 SFI (2002)
Throttle Position Sensor: Service and Repair
REMOVAL

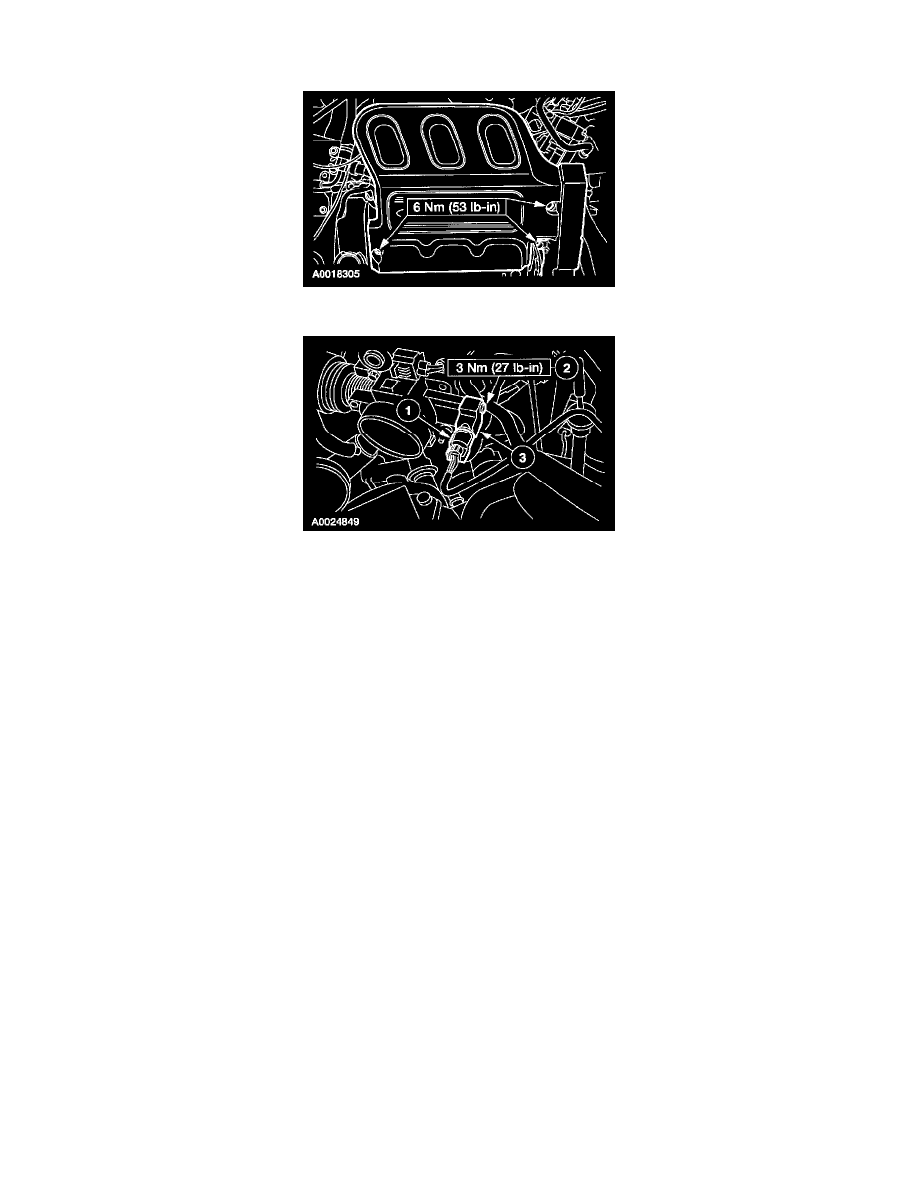

1. Remove the nuts and the engine appearance cover.
2. Remove the Throttle Position (TP) sensor.
1
Disconnect the electrical connector.
2
Remove the screws.
3
Remove the sensor
NOTE: Air cleaner outlet tube is removed for clarity.
INSTALLATION
1. To install, reverse the removal procedure.
