Escape 4WD V6-182 3.0L VIN 1 SFI (2002)

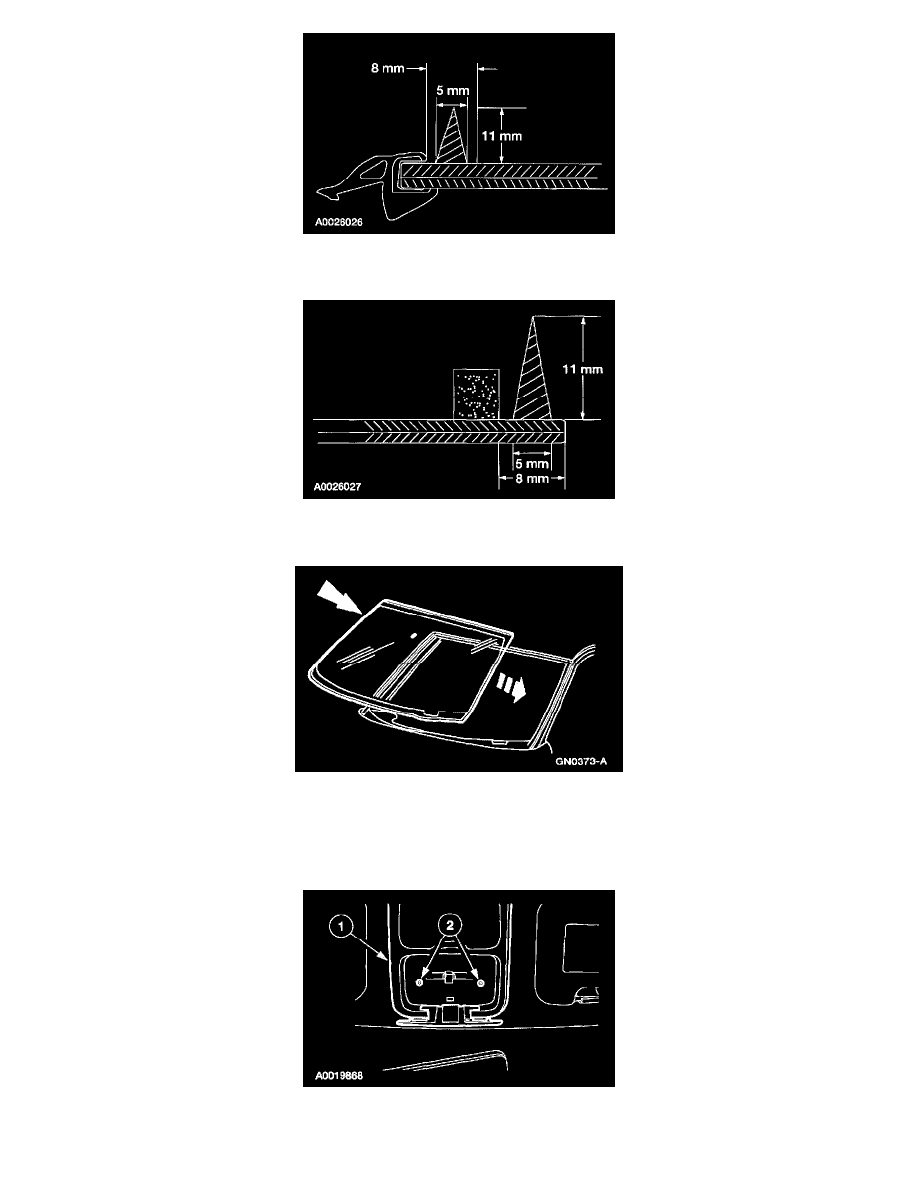

10. Apply a bead of Urethane Adhesive Essex 400-HV or Essex U-216, which meets Ford specification WSB-M2G316-B to the sides and top of the
windshield glass.
11. Apply a bead of Urethane Adhesive Essex 400-HV which meets Ford specification WSB-M2G316-B to the bottom of the windshield glass outside
the foam dam.
12. Install the windshield glass aligning it to the marks previously made.
13. After the windshield glass is set, check for water leaks and add urethane adhesive where needed.
14. If necessary, remove excess urethane adhesive from the outside surface of the windshield glass.
15. Install the cowl grille.
16. Reposition the front portion of the headliner.
17. Install the overhead console.
1
Position the overhead console.
