Escort L4-110 1.8L DOHC (1994)
Throttle Cable/Linkage: Service and Repair
Accelerator Pedal and Shaft
REMOVE

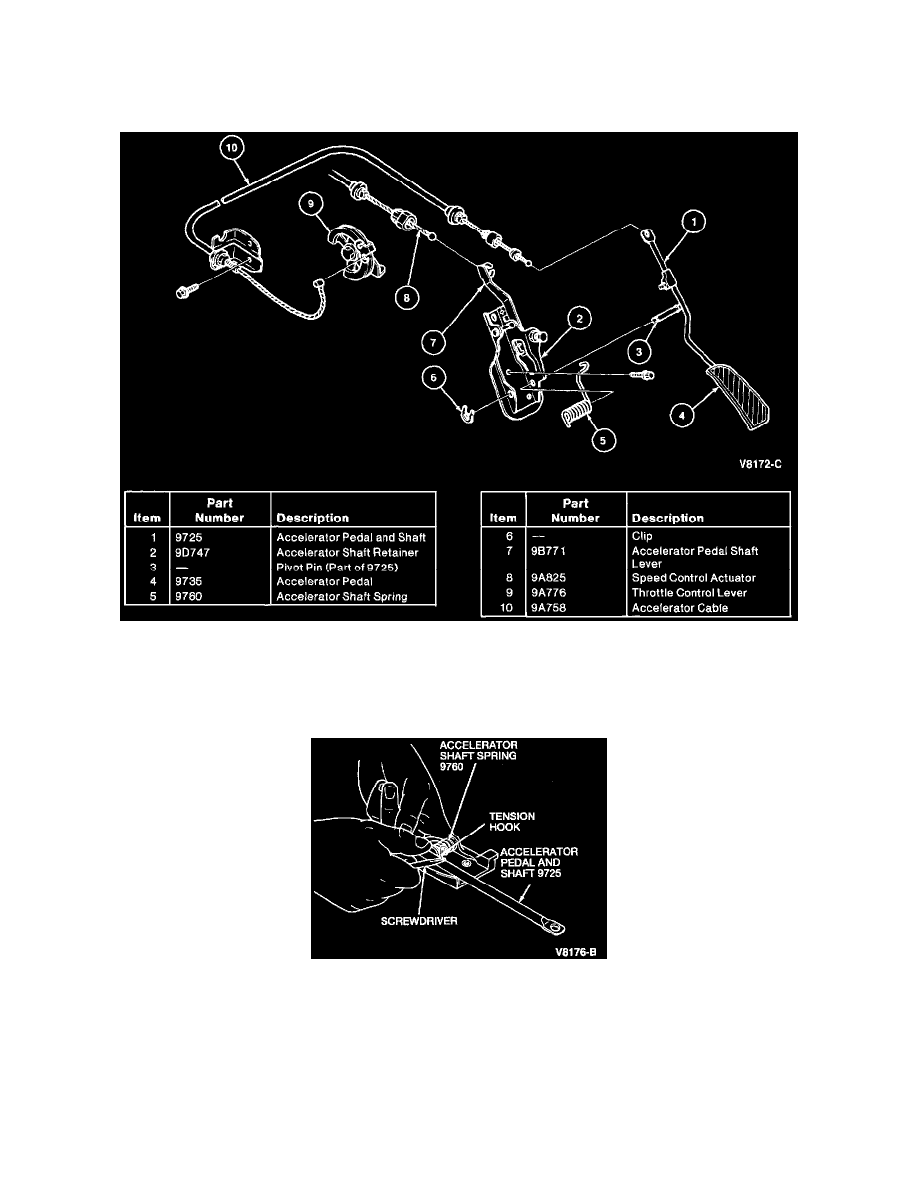

Accelerator Pedal And Linkage
1.
Remove the accelerator cable (9A758) from the accelerator pedal and shaft (9725) by disconnecting the cable retaining clip from the shaft.
2.
If equipped, disconnect the speed control actuator (9A825) from the accelerator pedal shaft lever (9B771).
3.
Remove the accelerator shaft retainer (9D747) bolts and remove the accelerator pedal and shaft, and accelerator shaft retainer assembly.
Accelerator Shaft Removal
4.
Using a screwdriver, disconnect the accelerator shaft spring tension hook from the accelerator pedal and shaft.
