Escort L4-116 1.9L VIN J FI HP (1988)

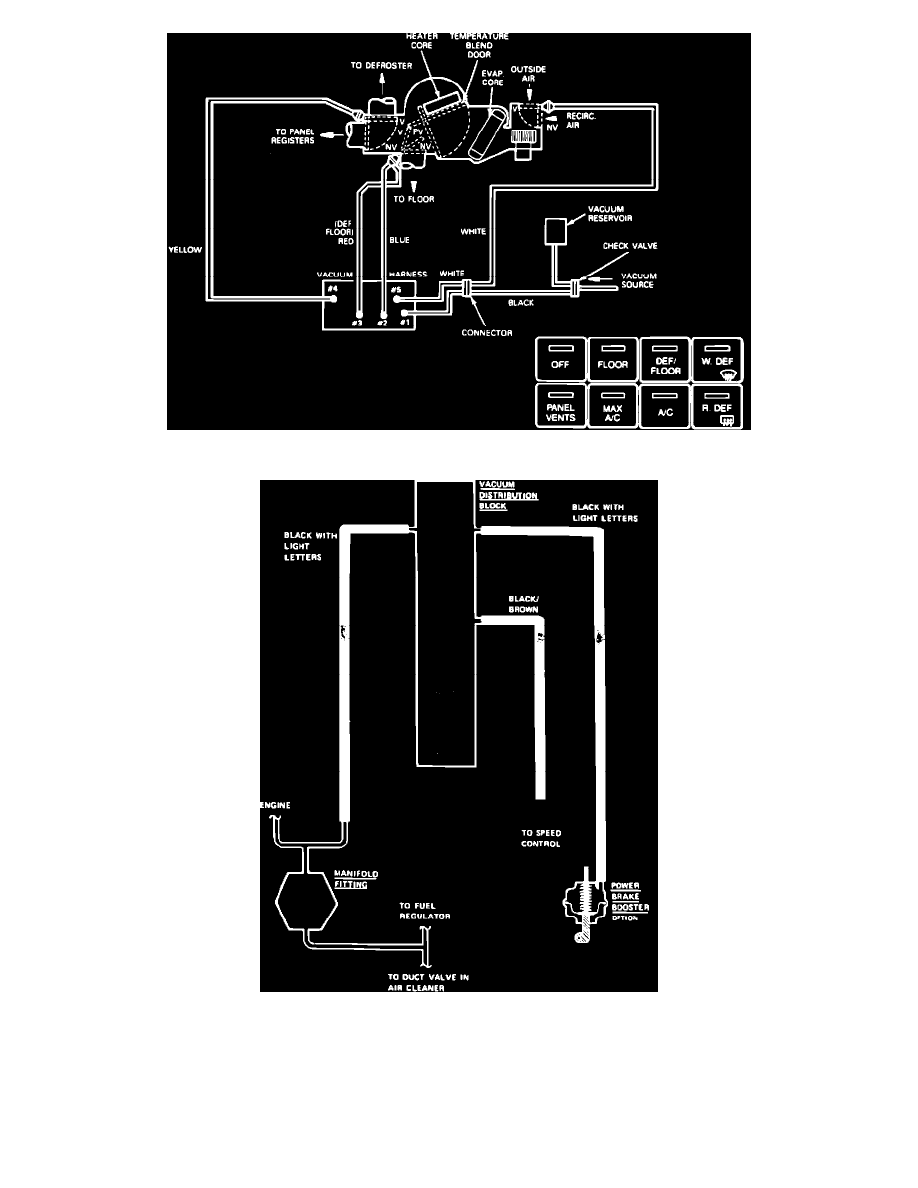

Air Conditioning & Heater Vacuum Hose Routing
Fig. 55 Vacuum Distribution Circuit. Gasoline Engine
A - O
A/C Clutch Field Coil: Part Of Compressor Assembly
A/C Clutch Pressure Cycling Switch: Attached To Suction Accumulator
A/C Fan Controller: Behind Glove Compartment
Air Charge Temperature Sensor: Top RH Rear Of Engine
