Escort L4-121 2.0L SOHC VIN P SFI (2002)
Power Steering Bleeding: Service and Repair
See TSB 07-07-1-7
Purging

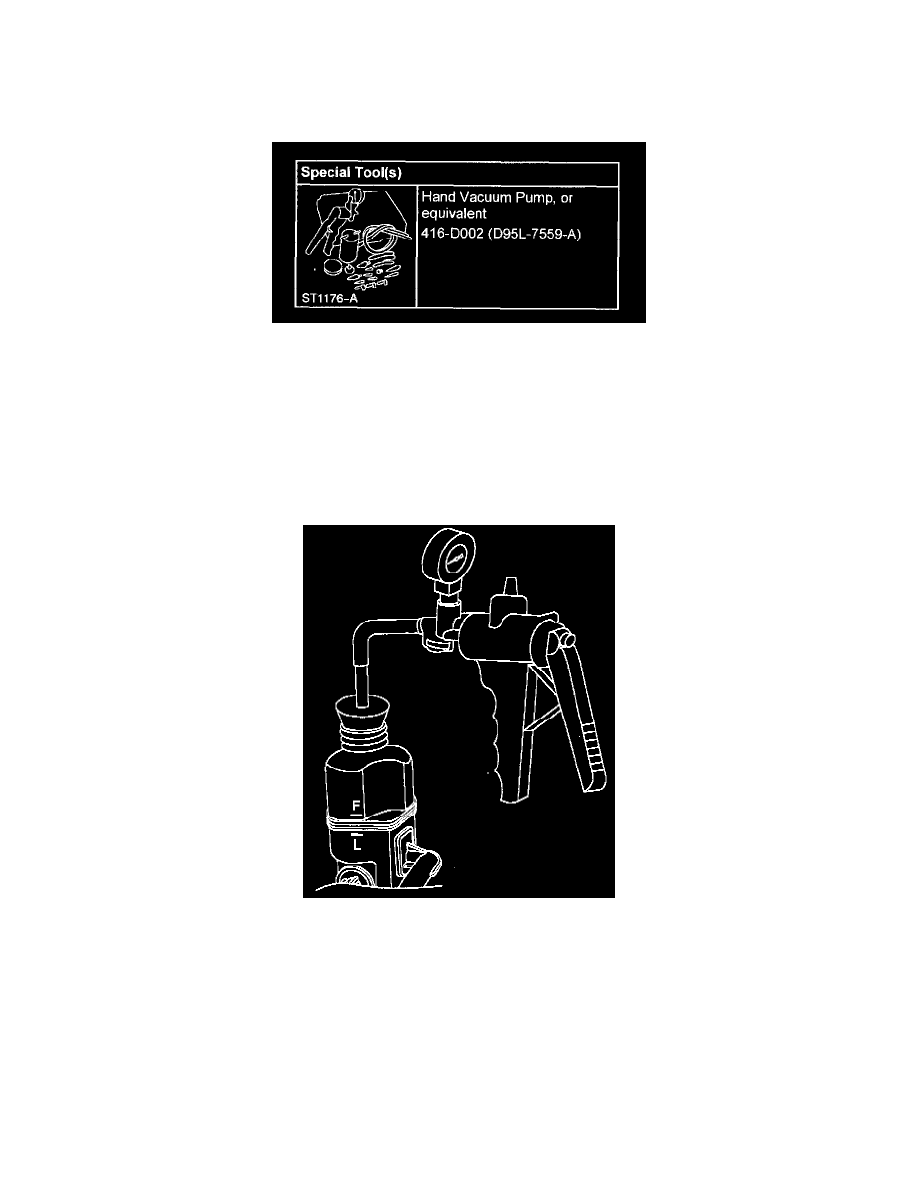

Special Tool(s)
CAUTION: If the air is not purged from the power steering system correctly, premature power steering pump failure could result. This condition can
occur on pre-delivery vehicles with evidence of aerated fluid or on vehicles that have had steering component repairs.
1. NOTE: A whine heard from the power steering pump may be caused by air in the system. The power steering purge procedure must be performed
prior to any component repair for which power steering noise complaints are accompanied by evidence of aerated fluid.
Remove the power steering pump reservoir cap. Check the fluid.
^
Use Motorcraft MERCON Multipurpose ATF XT-2-QDX or equivalent MERCON fluid.
2. Tightly insert the stopper of the vacuum pump into the reservoir.
3. Start the vehicle.
