Escort L4-121 2.0L SOHC VIN P SFI (2002)
Ball Joint: Specifications

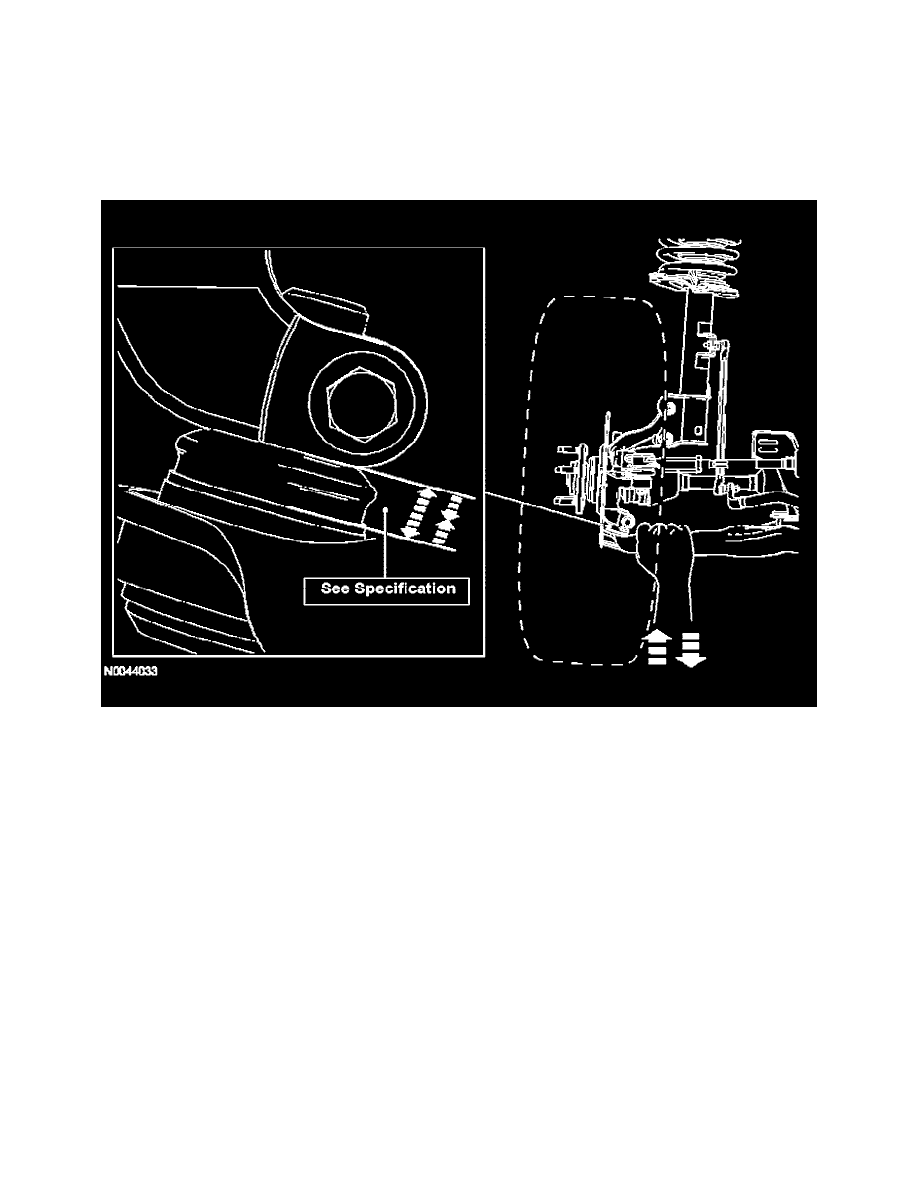

Front Suspension Balljoint Inspection Job Aid
Front Lower Balljoint
Measurement .................................................................................................................................................. Between lower control arm and knuckle
Deflection ........................................................................................................................................................................................ 0-0.008 in (0-0.2mm)
Reference Diagram .......................................................................................................................................................................................................... D
