Escort L4-121 2.0L SOHC VIN P SFI (2002)
Pressure Plate: Specifications
Pressure Plate Diaphragm Spring Fingers
Maximum Depth mm (in) ...................................................................................................................................................................................... 0.5(0.020)
Pressure Plate Surface
Maximum Clearance mm (in) ................................................................................................................................................................................ 0.5(0.020)
Torque Specifications
Pressure Plate Bolts ........................................................................................................................................................................ 16-32 Nm (12-24 ft. lbs.)

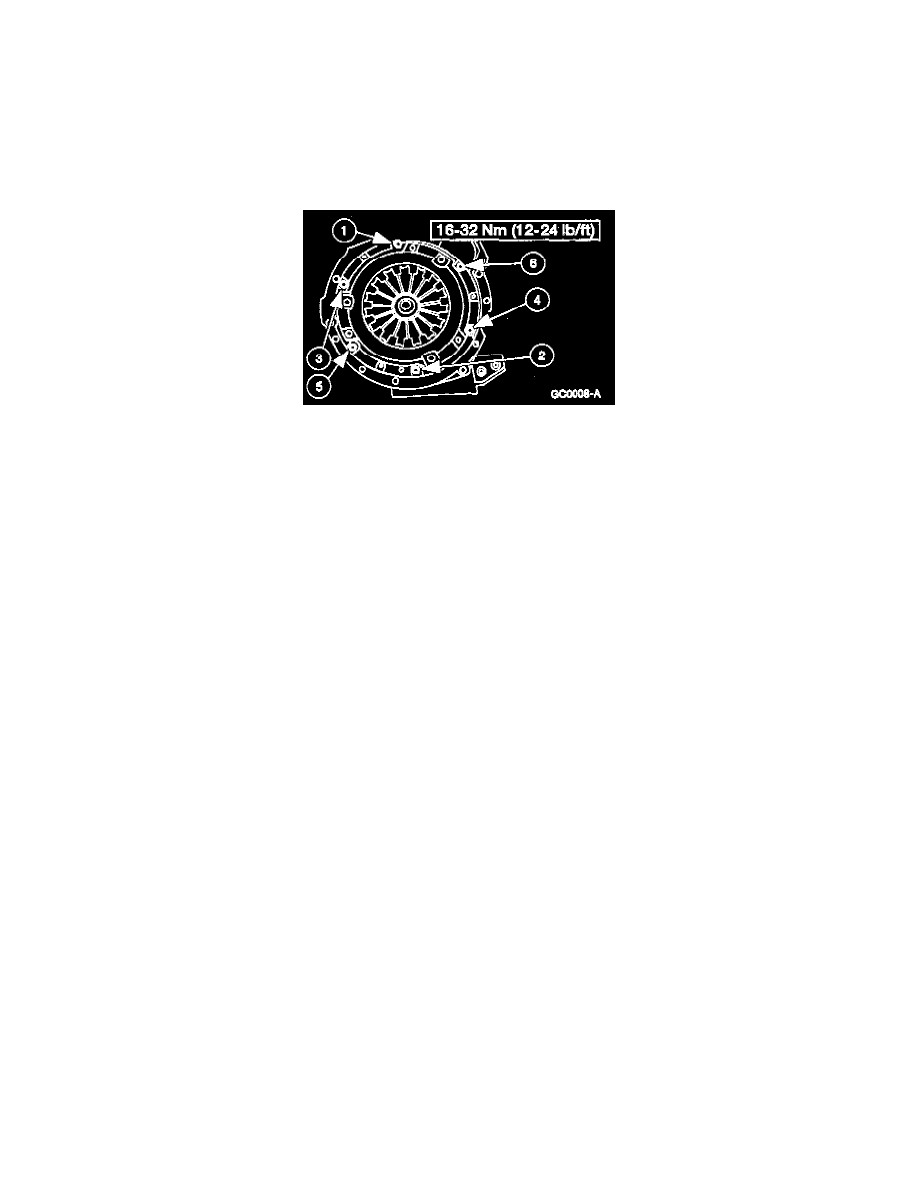

Pressure Plate Sequence
NOTE: If reusing clutch pressure plate and flywheel, align marks made during removal. Tighten them in sequence to specification
