Escort L4-122 2.0L SOHC (1997)
Compressor Shaft Seal: Service and Repair

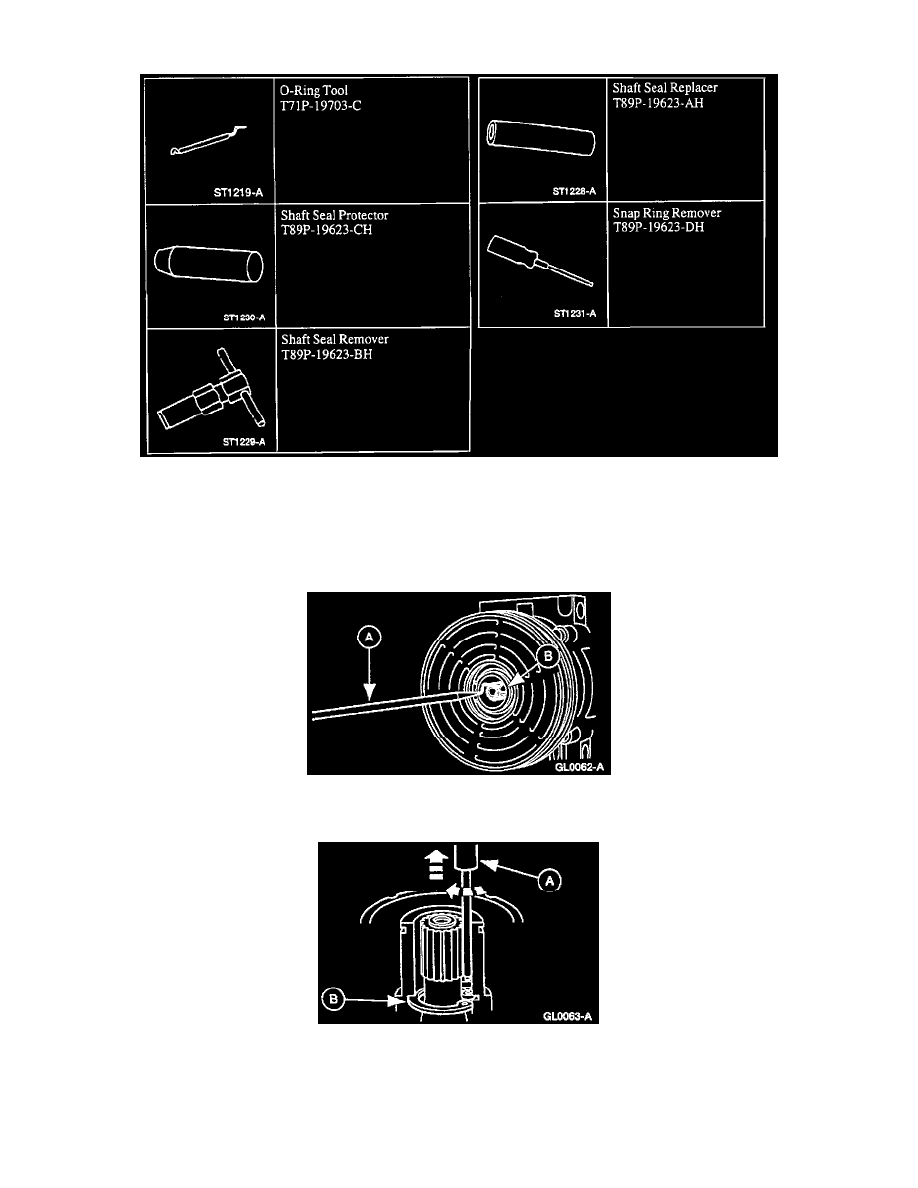

Special Tools
Special Tools
REMOVAL
1. Remove the A/C clutch from the A/C compressor.
2. Use (A) O-Ring Tool T71P-19703-C to remove the (B) shaft seal felt from the nose of the A/C compressor.
3. Clean the compressor nose area.
4. Use (A) Snap Ring Remover T89P-19623-DH to remove the (B) shaft seal snap ring.
