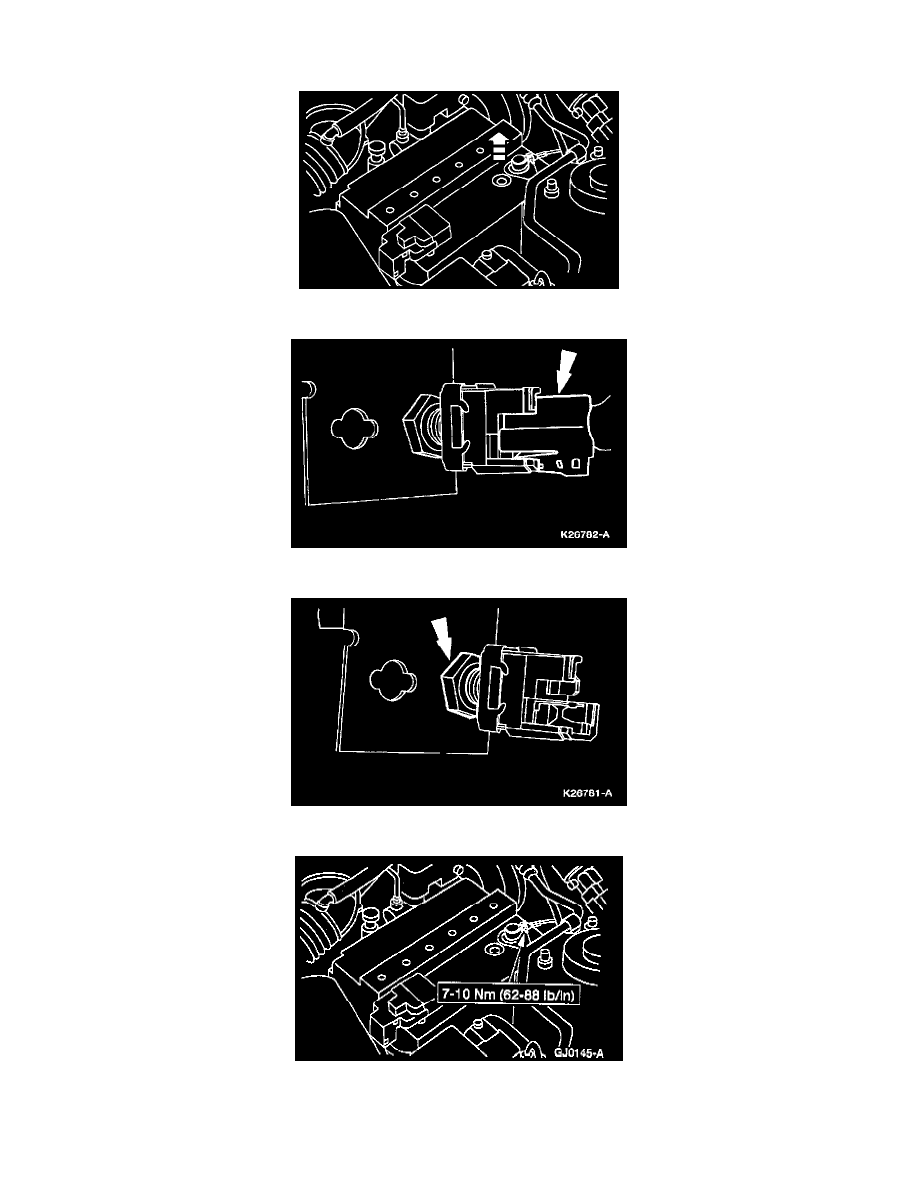

Brake Light Switch: Service and Repair

REMOVAL

1. Disconnect the battery ground cable.

2. Disconnect the Brake ON/OFF (BOO) switch electrical connector.

3. Loosen the BOO switch locknut and remove the BOO switch.

INSTALLATION

1. To install, reverse the removal procedure.
