Expedition 2WD V8-281 4.6L VIN W EFI (1997)
Key Reminder Switch: Service and Repair

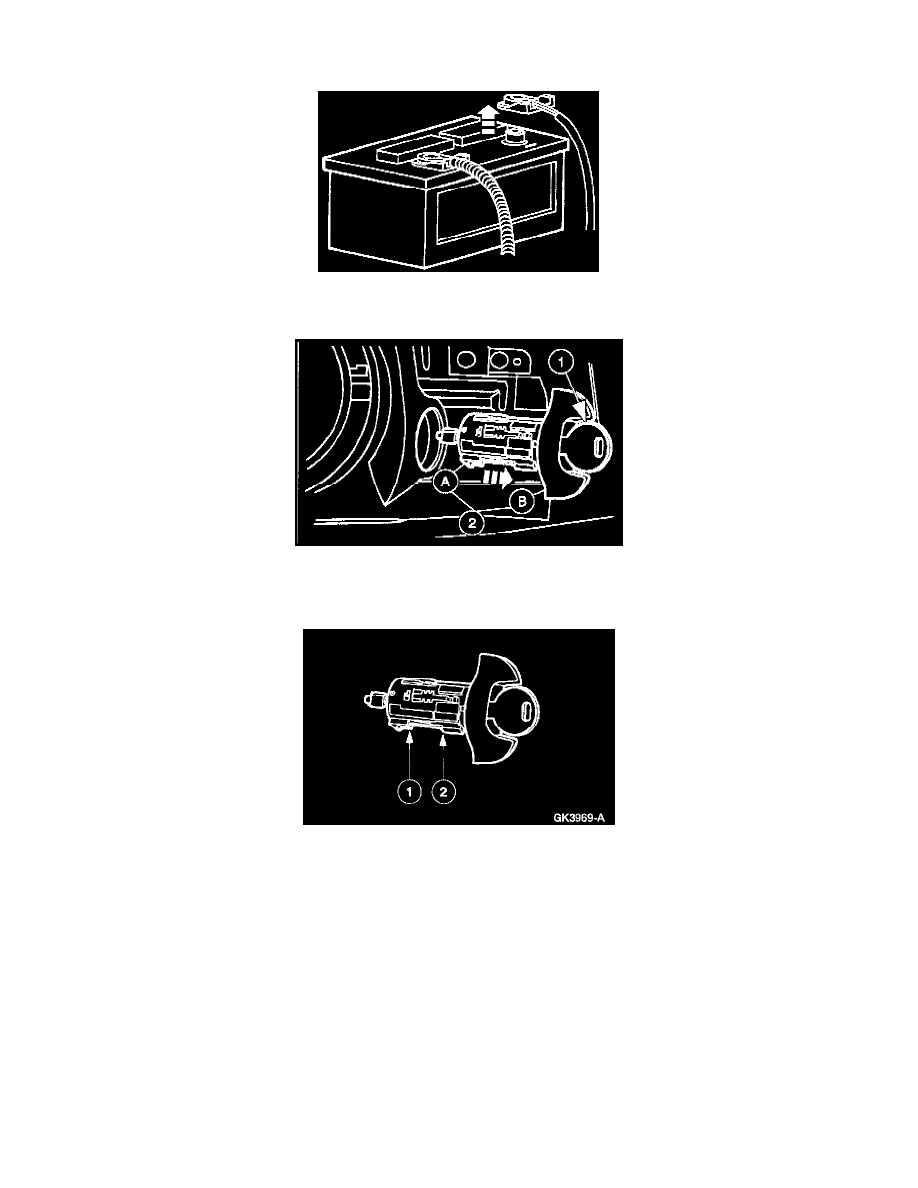

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the ignition switch lock cylinder.
1. Insert the ignition key and turn to the RUN position.
2. Press the (A) ignition switch lock cylinder release tab while pulling out the (B) ignition switch lock cylinder.
3. Remove the key in ignition warning switch.
1. Pry clip down.
2. Push key in ignition warning switch off the rear of the ignition switch lock cylinder.
INSTALLATION
1. To install, reverse the removal procedure.
