Expedition 2WD V8-4.6L SOHC VIN W (2000)
Door Lock Cylinder: Service and Repair
REMOVAL
NOTE: Individual lock cylinders are repaired by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock
repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current code of the vehicle.
1. Remove the front door outside handle. For additional information, refer to Handle-Outside, Front Door.
2. Remove the front door lock cylinder.

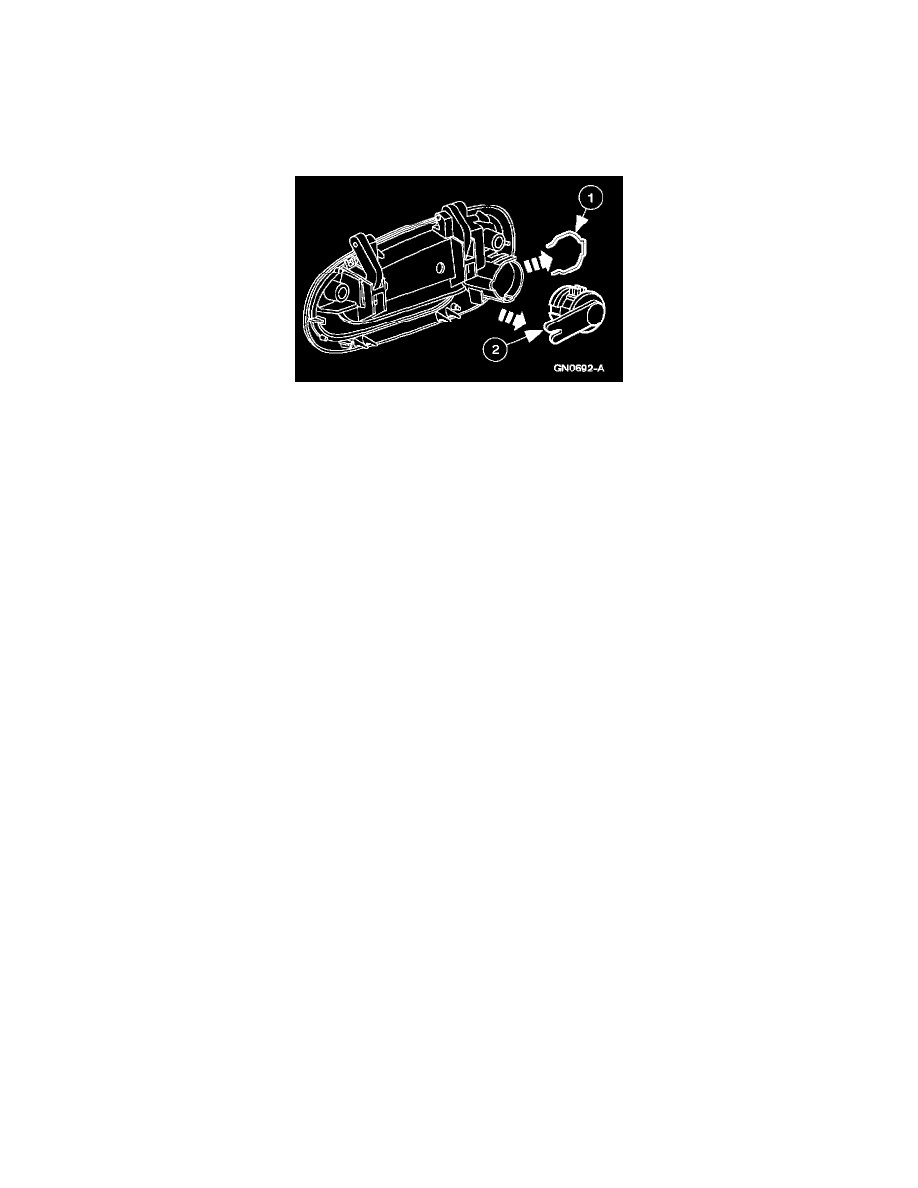

1
Remove the retainer.
2
Remove the front door lock cylinder.
INSTALLATION
1. To install, reverse the removal procedure.
