Expedition 2WD V8-5.4L SOHC VIN L (1997)
Shift Interlock Solenoid: Service and Repair
REMOVAL
1. Remove the steering column.

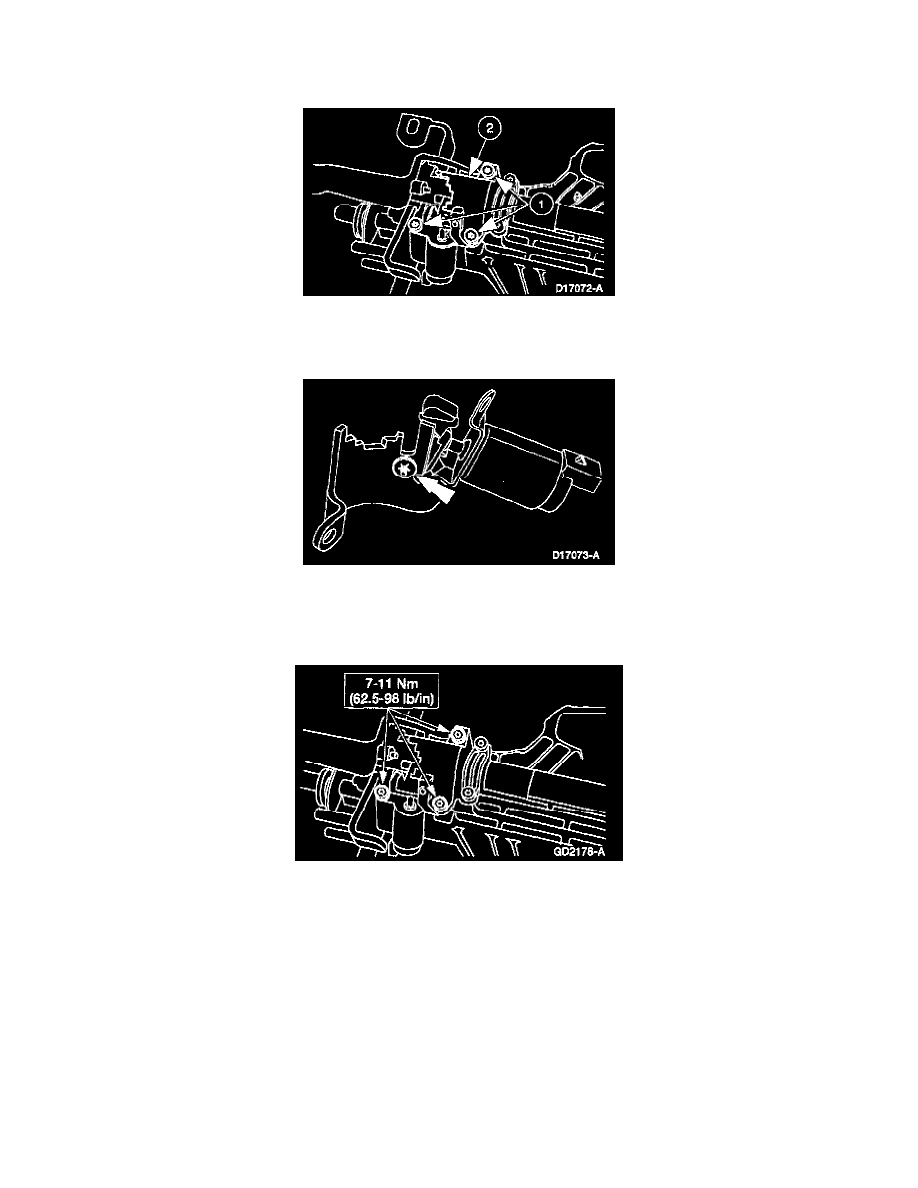

2. Remove the insert plate and shift lock actuator.
(1) Remove the three shift lock actuator bolts.
(2) Remove the insert plate and shift lock actuator.
3. Remove the insert plate from the shift lock actuator.
-
Remove and discard the shift lock actuator clip.
NOTE: The shift lock actuator clip is an assembly aid for the assembly plant and does not need to be replaced in the field.
INSTALLATION
1. To install, reverse the removal procedure.
