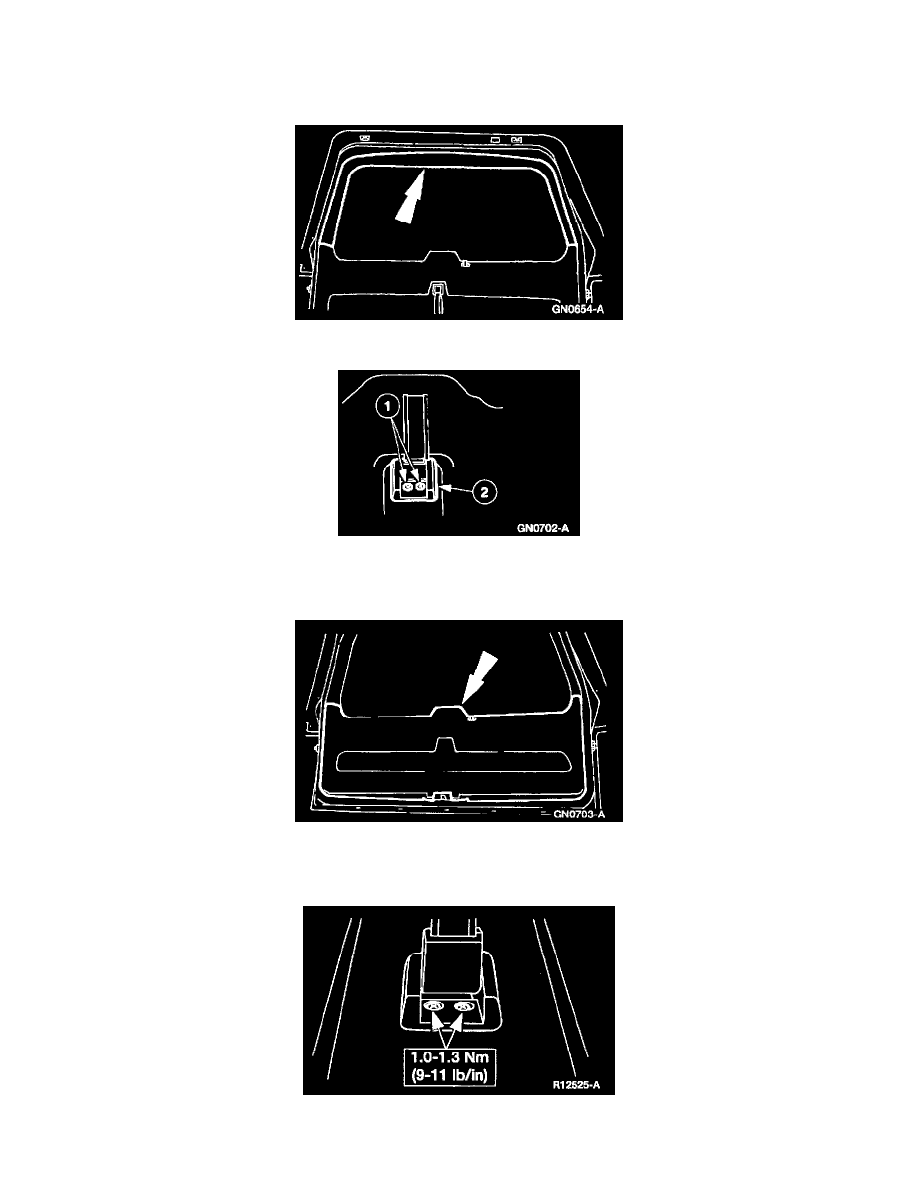

Trunk / Liftgate Interior Trim Panel: Service and Repair

TRIM PANEL - LIFTGATE

Removal

1. Remove the upper liftgate trim panel.

2. Remove the liftgate assist strap.

1

Remove the screws.

2

Remove the liftgate assist strap.

3. Remove the lower liftgate trim panel.

Installation

1. To install, reverse the removal procedure.
