Expedition 4WD V8-5.4L SOHC VIN L (2000)
Trunk / Liftgate Latch: Service and Repair
Liftgate
REMOVAL
1. Disconnect the battery ground cable.
2. Remove the liftgate trim panel.

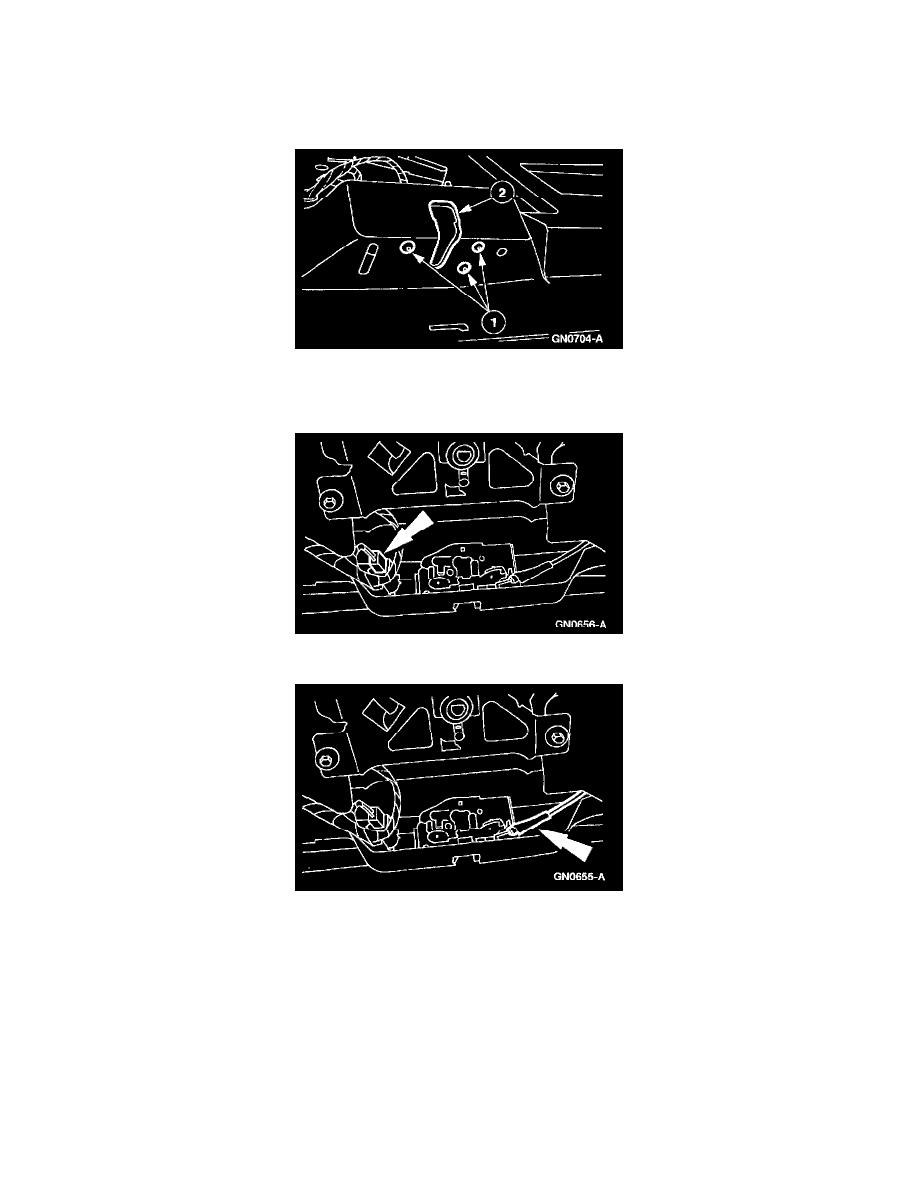

3. Separate the liftgate latch from the liftgate.
1
Remove the screws.
2
Separate the liftgate latch from the liftgate.
4. Disconnect the door open warning lamp electrical connector.
5. Disconnect the liftgate latch control cable.
^
Remove the liftgate latch.
CAUTION: Be careful not to Kink the liftgate latch control cable while disconnecting it.
INSTALLATION
