Expedition 4WD V8-5.4L SOHC VIN L (2000)

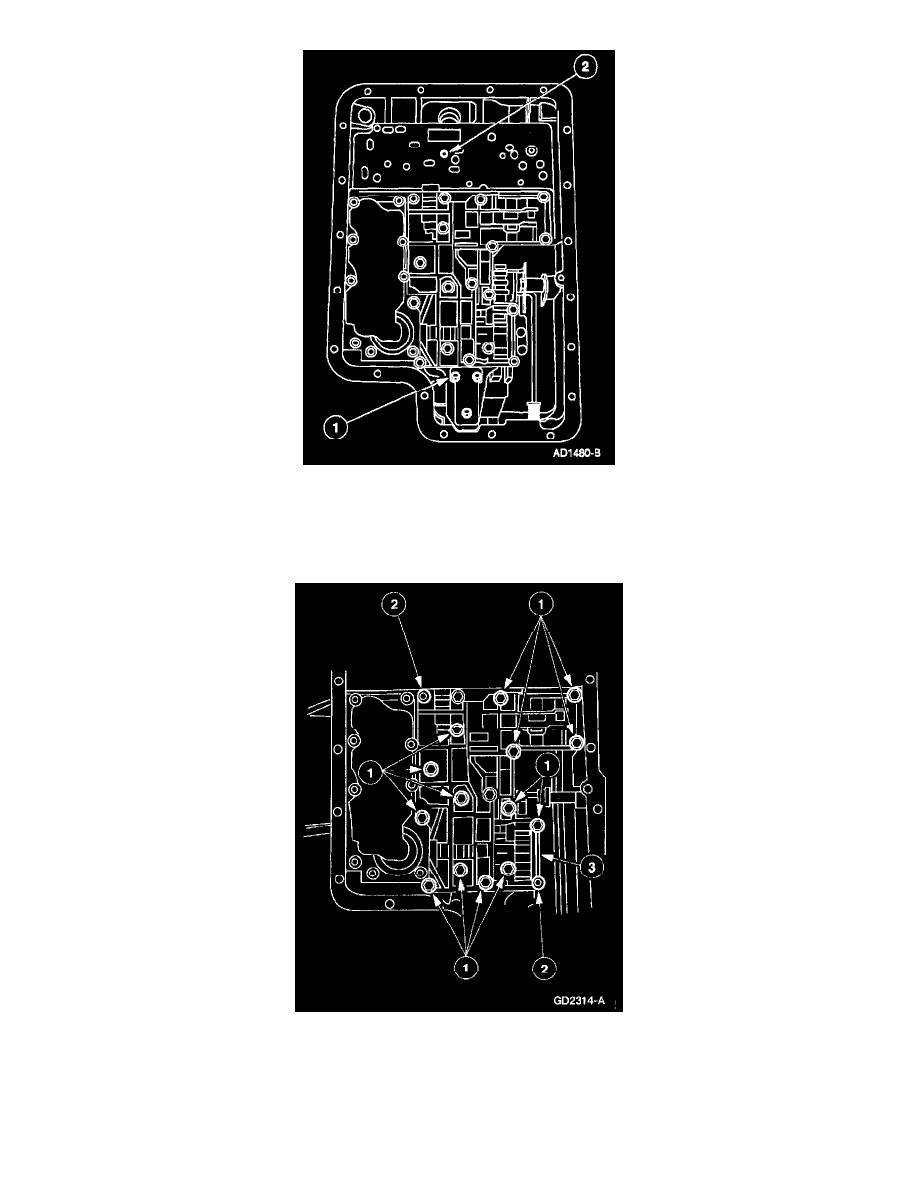

6. CAUTION: Prevent the front of the valve body separator plate from sagging and displacing the check balls.
If the valve body separator plate is not being serviced:
1
Remove the bolt.
2
Install the bolt into any case-threaded bolt hole on the opposite end of the separator plate.
7. Remove the main control valve body assembly.
1
Remove the bolts.
2
Remove the nuts.
3
Remove the main control valve body.
